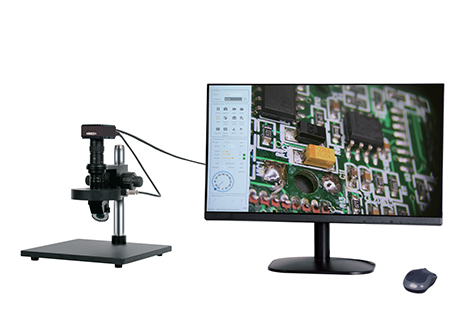

INSIZE 5327-MD10 2D/Motorized Rotation 3D Microscope (With Display) (26X~206X)

Magnification: 26X~206X

View field: 24×20~3×2mm

Sensor: 1/1.8" CMOS

Pixel: 8M

Resolution: 3840×2160

Single pixel size: 2×2μm

Frame rate: 60fps

Focus distance (2D): 86mm

Focus distance (3D): 50mm

Output: HDMI

Power supply: power adapter

Dimension (L×W×H): 330×300×318mm

Net weight: 7.8kg

2D MAGNIFICATION, VIEW FIELD AND MEASURING ACCURACY

Objective magnification 0.6X:

Image magnification: 26X

View field: 23×13mm

Measuring accuracy: ±5μm

Objective magnification 0.8X

Image magnification: 34X

View field: 17×10mm

Measuring accuracy: ±5μm

Objective magnification 1X

Image magnification: 42X

View field: 14×8mm

Measuring accuracy: ±5μm

Objective magnification: 1.5X

Image magnification: 62X

View field: 9×5mm

Measuring accuracy: ±5μm

Objective magnification: 2X

Image magnification: 83X

View field: 7×4mm

Measuring accuracy: ±5μm

Objective magnification 2.5X

Image magnification: 103X

View field: 5.5×3mm

Measuring accuracy: ±4μm

Objective magnification 3X

Image magnification: 123X

View field: 4.5×2.5mm

Measuring accuracy: ±4μm

Objective magnification 3.5X

Image magnification: 144X

View field: 4×2mm

Measuring accuracy: ±4μm

Objective magnification 4X

Image magnification: 165X

View field: 3.5×2mm

Measuring accuracy: ±3μm

Objective magnification 4.5X

Image magnification: 185X

View field: 3×1.5mm

Measuring accuracy: ±3μm

Objective magnification 5X

Image magnification: 206X

View field: 2.5×1.5mm

Measuring accuracy: ±3μm

STANDARD DELIVERY

Main unit (with stand): 1pc

0.5X camera adapter: 1pc

1X auxiliary objective: 1pc

16G USB flash disk: 1pc

White/black plate: 1pc

Mouse: 1pc

LCD (27"): 1pc

Calibration plate: 1pc

Power adapter: 1pc
