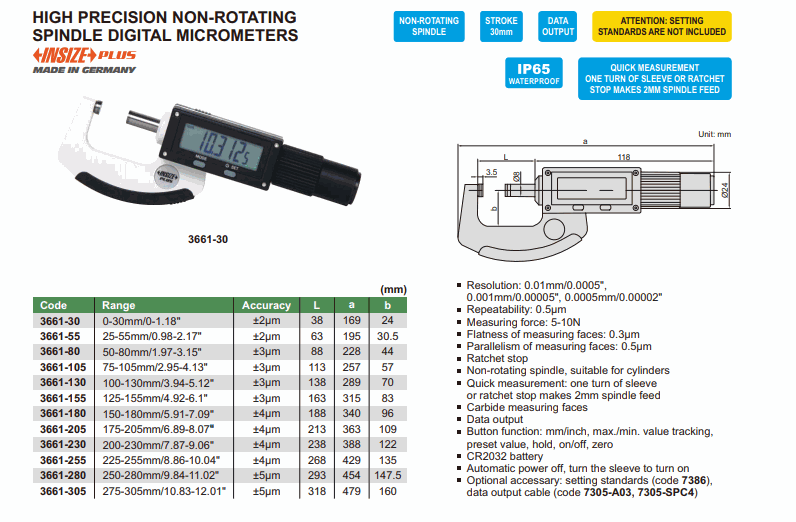

Range: 200-230mm/7.87-9.06”
Accuracy: ±4μm
L: 238mm
a: 388mm
b: 122mm
Resolution: 0.01mm/0.0005”; 0.001mm/0.00005”; 0.0005mm/0.00002”
Repeatability: 0.5μm
Measuring force: 5-10N
Flatness of measuring faces: 0.3 μm
Parallelism of measuring faces: 0.5 μm
Ratchet stop

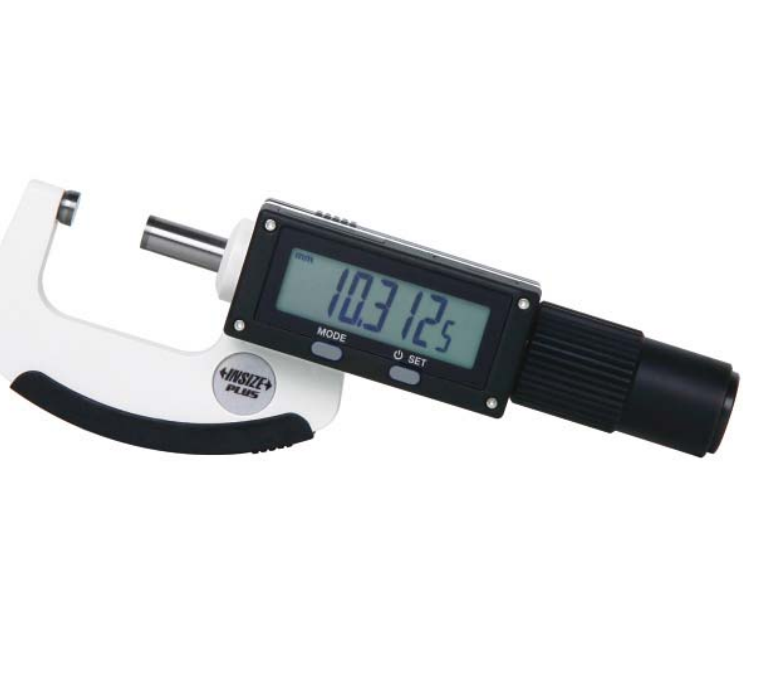

Non-rotating spindle, suitable for cylinders
Quick measurement: 1 turn of sleeve or ratchet stop makes 2mm spindle feed
Carbide measuring faces
Data output
Button function: mm/inch, max./min. value tracking, preset value, hold, on/off, zero
CR2032 battery
Automatic power off, turn the sleeve to turn on
Optional accessory:
- Setting standards (code 7386)
- Data output cable (code 7302-A03, 7305-SPC4)
