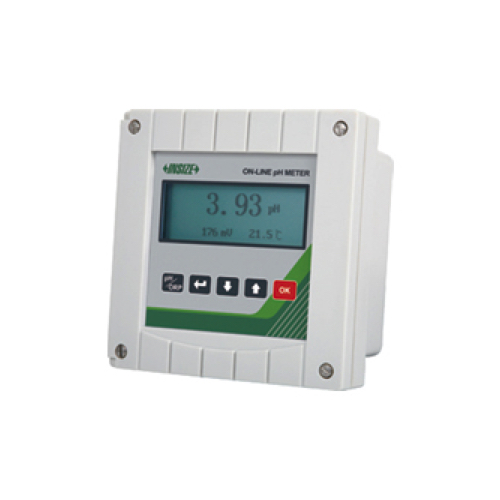

INSIZE 0435-HZ11 On-Line pH Meter (0.00 ~ 14.00pH)

pH

Range: 0.00 ~ 14.00pH

Resolution: 0.01pH

Accuracy: ±(0.05pH + 1d)

ORP

Range: -1800mV ~ +1800mV

Resolution: 1mV

Accuracy: ±(10mV + 1d)

Temperature

Range: -10.0°C ~ 120.0°C

Resolution: 0.1°C

Accuracy: ±(1°C + 1d)

Measurement of Water Sample Temperature: 0°C ~ 60°C

Isolated Output Signal: (4~20)mA DC, maximum load 750Ω

Output Upper and Lower Limits: pH: (0.00 ~ 14.00)pH optional, ORP: (-1800 ~ +1800)mV optional

Sample Flow Rate: (100 ~ 120)mL/min

Inlet Pressure: (7 ~ 140)kPa

Combination Electrode

Liquid Junction: PTFE double salt bridge

Reference Structure: Ag/AgCl

Temperature Compensation Unit: PT1000

Housing Material: PP

Outline Dimension: Ø30 × 170mm

Output Signal: Analog signal

Connector: Fork blade

Installation Mode: 3/4NPT

Pressure Range: ≤0.6MPa

Applicable Samples: Routine or contaminated samples

Operating Environment: Temperature: (-5 ~ 50)°C, Relative Humidity: ≤90%

Power Supply: AC 220V, 50Hz

Hole-opening Size: 140 × 140mm

Dimension (W × D × H): 166 × 166 × 110mm

Weight: 2kg

Datasheet

STANDARD DELIVERY:

Main unit: 1 pc

Combination pH/ORP electrode (0435-HZ11-E): 1 pc

pH buffer powder (0435-HZ11-S)*: 15 pcs

Assembly parts**: 1 set

*Dissolve in distilled water to 250mL

**Including mounting bracket, mounting screws, fuses
