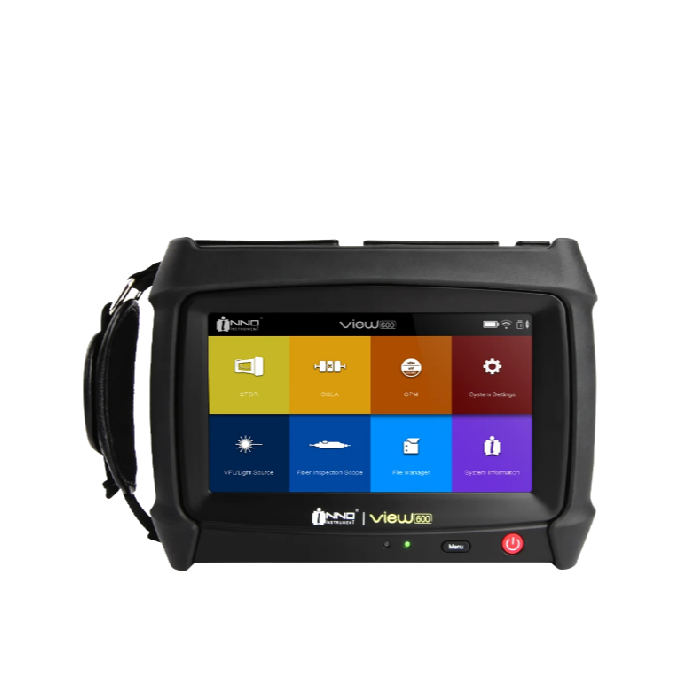

Display: 7 inches, High Brightness TFT LCD, resolution of 800×480
Distance unit: m / km / mile / ft
Range settings (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
Range settings (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile
Pulse widthL: 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)
Linearity: 0.03dB
Resolution: 0.04m ~ 10.24m
Loss readout resolution: 0.001dB
Battery capacity: Operating Time : Up to 12hours
File format: SOR, BMP, JPG, GDM, SOLA, PDF
External connection: USB 2.0 x 2
Compatible connector: APC(FC, SC, LC), UPC(FC, SC, LC, ST)
Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A
VFL port: 2.5mm ferrule type
VFL wavelength: 650nm ±10nm
VFL distance: Up to 10km
VFL output power: 20mW
Light source: Operating wavelength: 1310nm / 1550 nm ±10nm
Light source output power: -11dBm
OPM port: SC, FC, ST(interchangeable)
Wavelength calibration: 850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm
Power range: -70 to +6dBm (Accuracy: 0.01dB)
Dimension: 6.25H x 8.58W x 2.75D inches
Weight: 3.75pounds (1.70kg with battery)
Operating condition: -10~50℃
Storage condition: -20~60℃
Relative humidity: 0~95% (Noncondensing)
