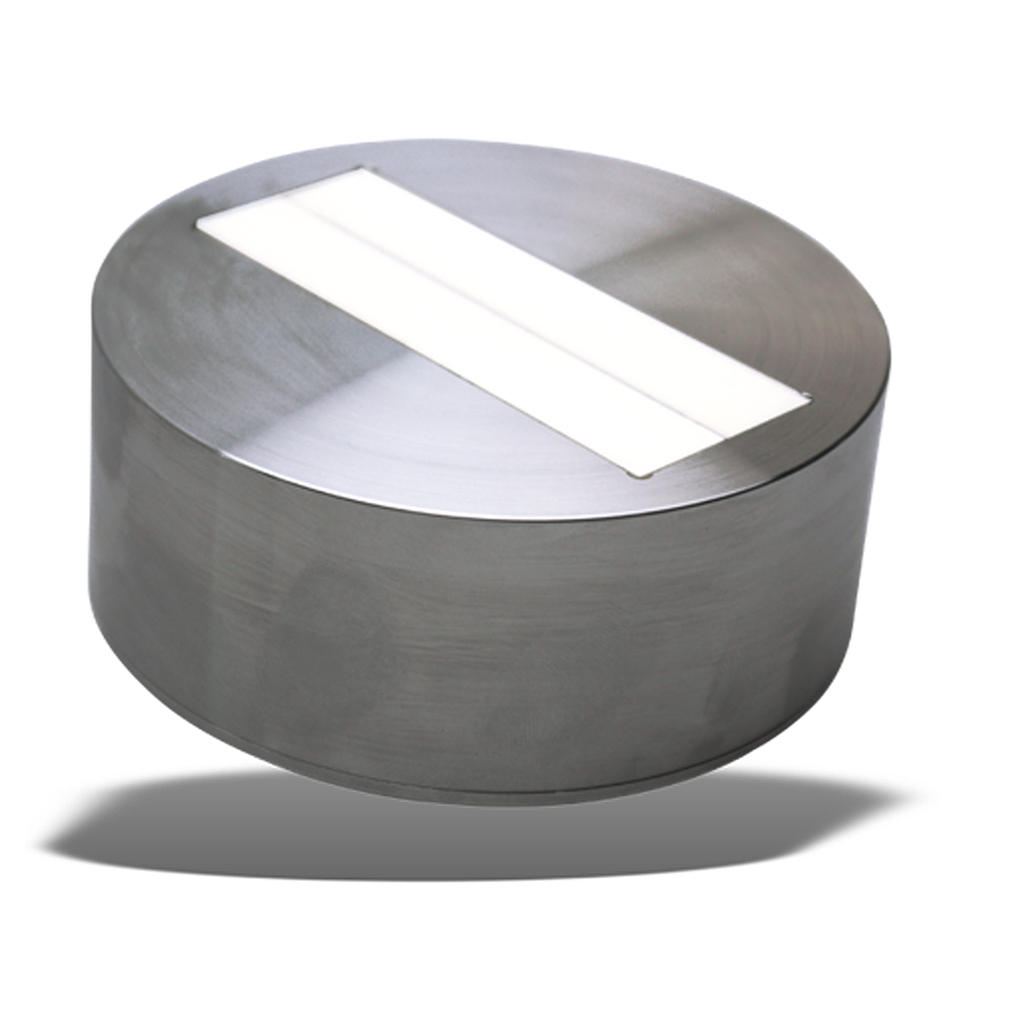

Probe housing: Stainless steel with ceramic window
Probe dimensions: Ø 108 mm, height 45 mm
Measuring range: 0-100% vol. moisture content, accuracies up to 0.1% are possible
Conductivity EC-TRIME: 0...12 mS/m
Power supply : +12V bis +24V DC; 3W
Measuring field dimensions: approx 30-50 mm, depending on humidity and material
Calibration: The SONO VARIO probes are supplied with a universal calibration. Standard aggregates can be measured (plug and play).
Visualization: Connection to a PLC: analog interface (0-20mA, 4-20mA). External display (SONO VIEW) or serial interface.
Advanatges
Ideally to measure abrasive materials like sand, gravel and other aggregates
Highly reliable when measuring complex materials like minerals, powders, granules, quartz sand, food and sludge
Thanks to TRIME technology it is unaffected by steam or changing particle sizes of sand and gravel
The additionally measured radar-based conductance up to 12dS/m allows conclusions on other parameters of the material recipe
Simple installation in containers, shafts, silos and conveyor belts
Probe head made of stainless steel with rectangular ceramic window
In case of abrasion at probe head an automatic correction of the measuring value happens – without recalibration
Brochure
Manual
SONO-VARIO masters applications where capacitive probes come to their limits. The devices measures precisely moisture and temperature in bulk solids.
Discover the advantages of both variations: SONO-VARIO Standard to measure complex and abrasive materials and SONO-VARIO Xtrem for highly abrasive solids and adhesive materials.
