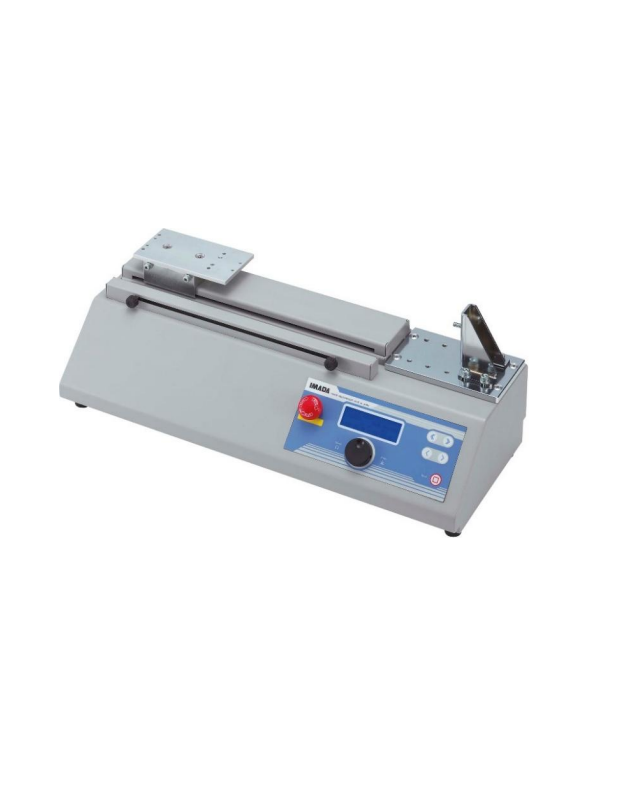

IMADA MH2-500N Force Gauge Stand (500 N)

Capacity: 500 N

Speed: Digital, 10 to 300 mm/min

10–20 mm/min: by 0.5 mm/min

20–100 mm/min: by 5 mm/min

100–300 mm/min: by 10 mm/min

Max. Sample Height: Approx. 245 mm (*1)

Rigidity: [Standard models] 0.5 mm or below

Stroke Limit: Controllable with horizontal knob

Measuring Modes: Manual / Jog / Cycle mode

Functions:

Counter (number of tests to repeat): Max. 65,535 times

Timer (pausing time): Up to 99 min 59.9 sec (by 0.1 sec)

Control: Emergency stop, force control (*2), overload stop (*2, *3)

Operating Temperature/Humidity:

0 to +40°C

RH 85% or less (without condensation)

Voltage: AC 100 to 240 V, 50/60 Hz

(Select from 100, 120 and 230 V. Accessories are provided accordingly.)

Power Consumption: 50 W

Dimensions: Refer to dimensions shown in the diagram on page 6/7

Weight: Approx. 14 kg
