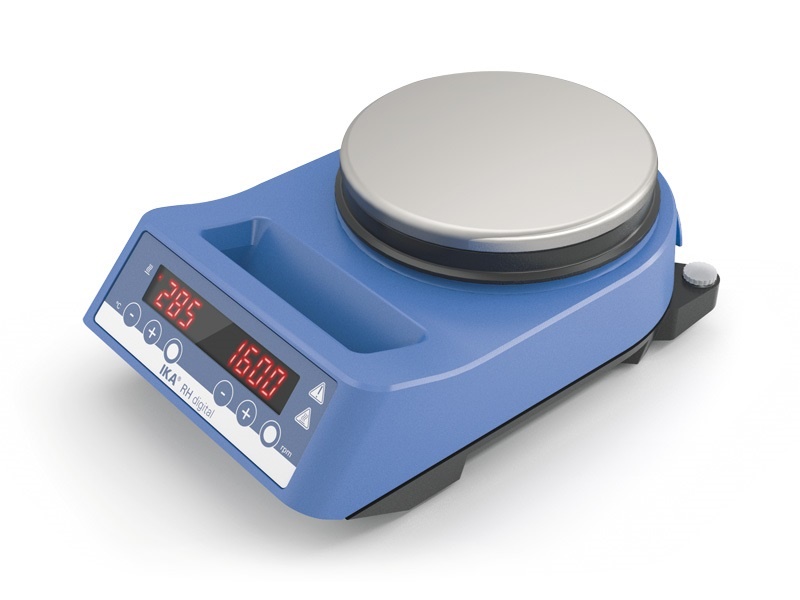

IKA RH digital Magnetic Stirrer

Number of stirring positions1

Stirring quantity max. per stirring position (H2O)15 l

Maximum load20 kg

Motor rating output2 W

Direction of rotationleft

Speed display set-valueLED

Speed adjustmentButton

Speed range100 - 2000 rpm

Setting accuracy speed50 rpm

Stirring bar length20 - 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)+12 K

Heat output600 W

Temperature display set-valueLED

Temperature unit°C

Heating temperature range50 - 320 °C

Heat controlButton

Temperature setting range50 - 320 °C

Connection for ext. temperature sensorETS-D5

Adjustable safety circuit100 - 360 °C

Set-up plate materialstainless steel 1.4301

Set-up plate dimensionsØ 135 mm

Heating rate (1l H2O in H1500)6 K/min

Dimensions (W x H x D)160 x 100 x 250 mm

Weight3.845 kg

Permissible ambient temperature5 - 40 °C

Permissible relative humidity80 %

Protection class according to DIN EN 60529IP 21

Voltage230 V

Frequency50/60 Hz

Power input620 W
