Type of light: red light

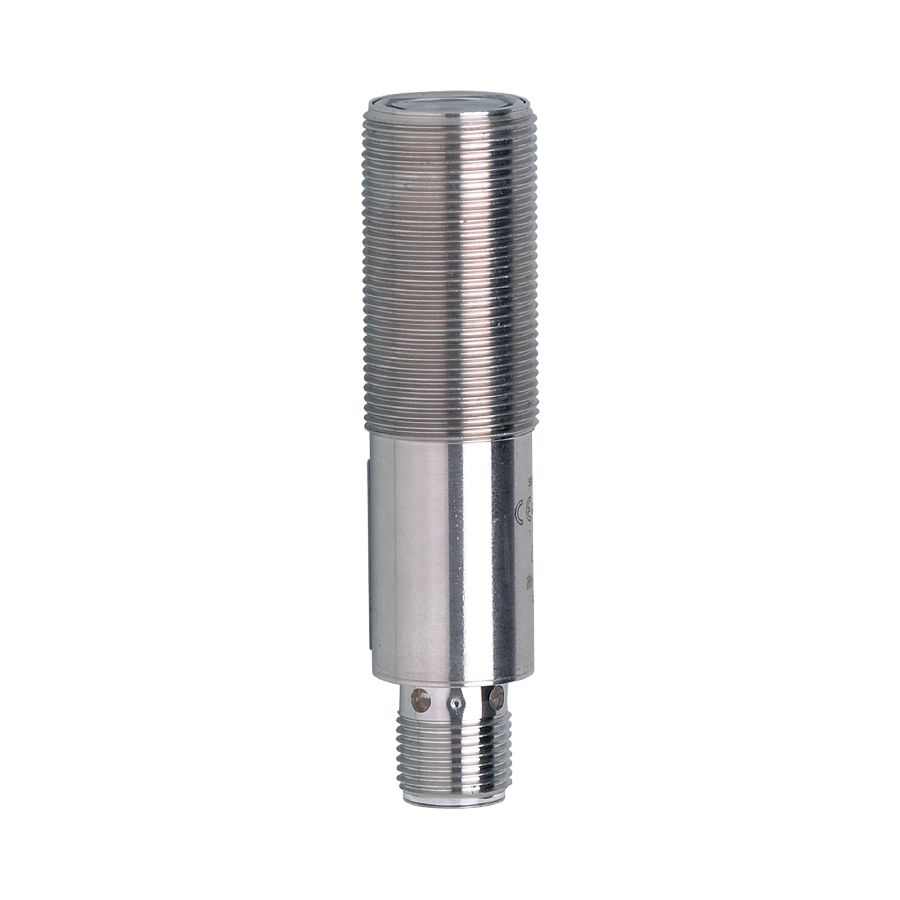

Housing: threaded type
Function principle: Through-beam sensor
Operating voltage [V]: 10...36 DC
Current consumption [mA]: 13
Protection class: II
Reverse polarity protection: yes
Wave length [nm]: 655
Typ. lifetime [h]: 50000
Transmitter / receiver: transmitter
Range [m]: < 60
Range adjustable: no
Diameter of the smallest detectable object [mm]: 3; (60 m)
Max. light spot diameter [mm]: 312
Ambient temperature [°C]: -10...60
Protection: IP 65; IP 67
Weight [g]: 64.3
Dimensions [mm]: M18 x 1 / L = 72
Materials: stainless steel (1.4404 / 316L); PA; EPDM
Lens material: PMMA
Display: operation 1 x LED, green
Items supplied: lock nuts: 2 x
Connection: Connector: 1 x M12; coding: A
