Light type: Infrared light
Operating voltage [V]: 10...36 DC
Current consumption [mA]: < 35
Protection class: II
Reverse polarity protection: Yes
Wave length [nm]: 880
Electrical design: PNP
Output function: Light/Dark mode; (programmable)
Max. voltage drop switching output DC [V]: 2.5
Max. voltage drop of function check output [V]: 3.5
Max. current load for function check output [mA]: 10
Switching frequency [Hz]: 320
Short-circuit protection: Yes
Short-circuit protection type: Pulsed
Overload protection: Yes
Sensing range [mm]: 1...400; (white paper 200 x 200 mm)
Range adjustment: Yes
Maximum light spot diameter [mm]: 50
Reference light spot size: Range
Background suppression available: Yes
Ambient temperature [°C]: -25...60
Degree of protection: IP65
Weight [g]: 40

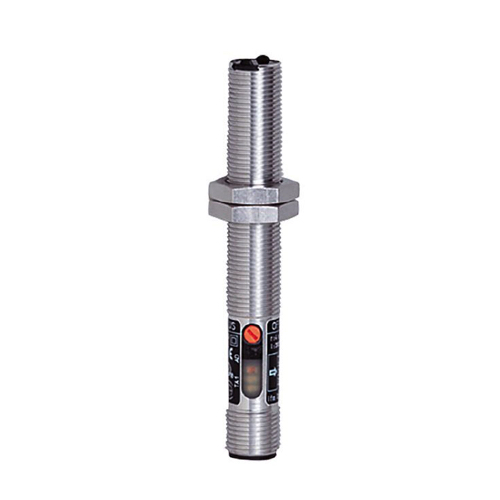

Dimensions [mm]: M12 x 1 / L = 74
Switching status display: 1 x LED, yellow
Operation display: 1 x LED, green
Function display: 1 x LED, red
Accessories included: 2 lock nuts and screwdriver
Connection: Connector: 1 x M12; Coding: A
