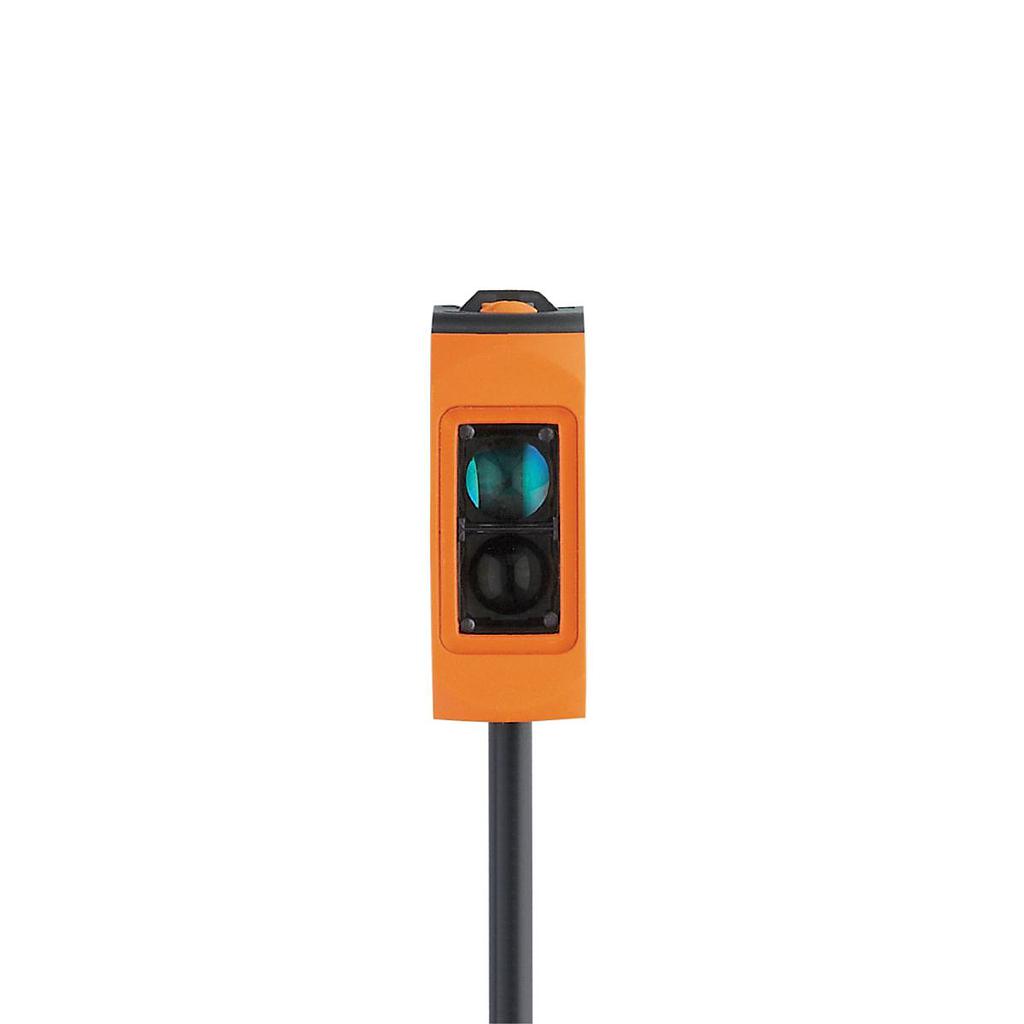

Type of light: Red light
Housing: Rectangular
Special feature: Background suppression
Function principle: Diffuse reflection sensor
Rated insulation voltage [V]: 10...30 DC
Current consumption [mA]: 22
Protection class: III
Reverse polarity protection: Yes
Wavelength [nm]: 633
Electrical design: NPN
Output function: Light/dark mode (selectable)
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 100
Switching frequency DC [Hz]: 1000
Short-circuit protection: Yes
Type of short-circuit protection: Pulse
Detection range [mm]: 2...200; (white paper 200 x 200 mm)
Range on white object (reflectance 90%) [mm]: 2...200
Range on gray object (reflectance 18%) [mm]: 4...200
Range on black object (reflectance 6%) [mm]: 8...200
Adjustable range: Yes
Max. light spot diameter [mm]: 8
Light spot size reference: at maximum range
Background suppression available: Yes
Ambient temperature [°C]: -25...60
Degree of protection: IP65; IP67
EMC: EN 60947-5-2
MTTF [years]: 683
UL approval: UL approval No. E008
Weight [g]: 60.15
Dimensions [mm]: 35.4 x 13 x 21
Thread design: M18 x 1
Material: Housing: ABS; PPSU; Sealing: EPDM
Lens material: PMMA
Lens alignment: Side lens
Tightening torque [Nm]: 0.5
Switching status display: 1 x LED, yellow
Operation display: 1 x LED, green
Note: Operating voltage “supply type 2” according to cULus
Connection: Cable: 2 m, PUR; 3 x 0.25 mm²
