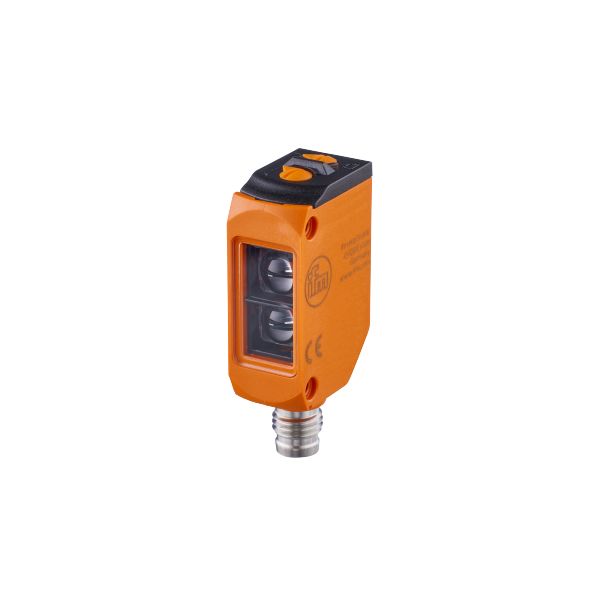

Light type: Red light
Housing: Rectangular
Special feature: Background suppression
Operating principle: Diffuse reflection sensor
Operating voltage [V]: 10...30 DC
Current consumption [mA]: 22; ((24V))
Protection class: III
Reverse polarity protection: Yes
Wavelength [nm]: 633
Electrical design: PNP
Output function: Light/dark mode (selectable)
Max. voltage drop of DC switching output [V]: 2.5
Rated continuous current of DC switching output [mA]: 100
Switching frequency DC [Hz]: 1000
Short-circuit protection: Yes
Type of short-circuit protection: Pulse
Measuring range [mm]: 2~200; (white paper 200 x 200 mm)
Measuring range on white object (reflectance 90%) [mm]: 2~200
Measuring range on gray object (reflectance 18%) [mm]: 4~200
Measuring range on black object (reflectance 6%) [mm]: 8~200
Adjustable measuring range: Yes
Max. light spot diameter [mm]: 8
Light spot size reference: at max. measuring range
Background suppression available: Yes
Ambient temperature [°C]: -25...60
Degree of protection: IP65; IP67
EMC: EN 60947-5-2
MTTF [years]: 683
UL approval: UL approval No. E001
Weight [g]: 18.3
Dimensions [mm]: 46 x 13 x 21
Thread design: M18 x 1
Material: Housing: ABS; PPSU
Lens material: PMMA
Lens alignment: Side lens
Tightening torque [Nm]: 0.5
Switching status display: 1 x LED, yellow
Operation display: 1 x LED, green
Note: Operating voltage supply type 2 according to cULus
Connection: Connector: 1 x M8; Coding: A; Locking: Brass, nickel-plated; Sealing: EPDM
