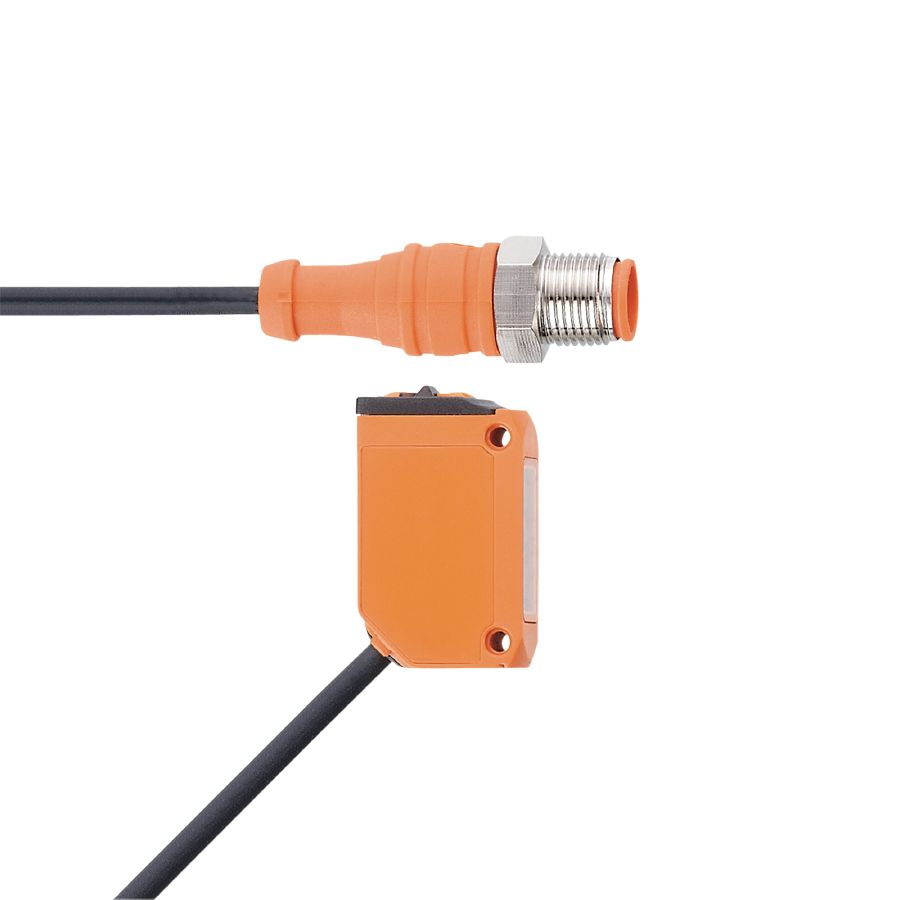

Type of light: red light
Housing: rectangular
Function principle: Through-beam sensor
Operating voltage [V]: 10...30 DC
Current consumption [mA]: 7; ((24 V))
Protection class: III
Reverse polarity protection: yes
Wave length [nm]: 633
Electrical design: PNP
Output function: light-on/dark-on mode; (selectable)
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 100
Switching frequency DC [Hz]: 1000
Short-circuit protection: yes
Type of short-circuit protection: pulsed
Transmitter / receiver: receiver
Range [m]: < 10
Range adjustable: yes
Ambient temperature [°C]: -25...60
Protection: IP 65; IP 67
Weight [g]: 33.2
Dimensions [mm]: 35.4 x 13 x 21
Materials: housing: ABS; PPSU; Sealing: EPDM
Lens material: PMMA
Lens alignment: side lens
Tightening torque [Nm]: 0.5
Display: switching status 1 x LED, yellow operation 1 x LED, green
Connection: Cable: 0.3 m, PUR; 3 x 0.25 mm²
Connection: Connector: 1 x M12; coding: A
