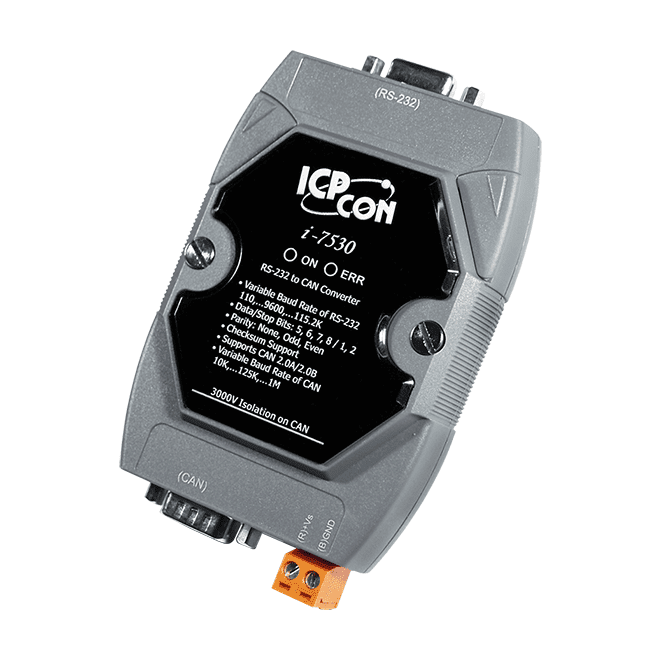

CAN Interface
Controller: Microprocessor inside with 20 MHz
Channel number: 1
Connector: 9-pin male D-Sub (CAN_L, CAN_H, N/A for others)
Baud Rate (bps): 10k, 20k, 50k, 125k, 250k, 500k, 800k, 1 Mbps
Transmission Distance (m): Depends on baud rate (e.g., max. 1000 m at 50 kbps)
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-coupler
Terminal Resistor: Selectable 120 Ω terminal resistor by jumper
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Receive Buffer: 1000 data frames
UART Interface
COM: RS-232
COM Connector: 9-pin female D-Sub (TxD, RxD, GND, N/A for others)
Baud Rate (bps): 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Bit: 5, 6, 7, 8
Stop Bit: 1, 2
Parity: None, Even, Odd
Receive Buffer: 900 data frames
LED
Round LED
ON LED: Power and Data Flow
ERR LED: Error
Power
Protection: Reverse polarity protection, over-voltage brown-out protection
Power Consumption: 1 W
Mechanism
Installation: DIN-Rail
Dimensions: 72 mm × 118 mm × 33 mm (W × L × H)
Environment
Operating Temperature: -25 ~ 75 ℃
Storage Temperature: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
