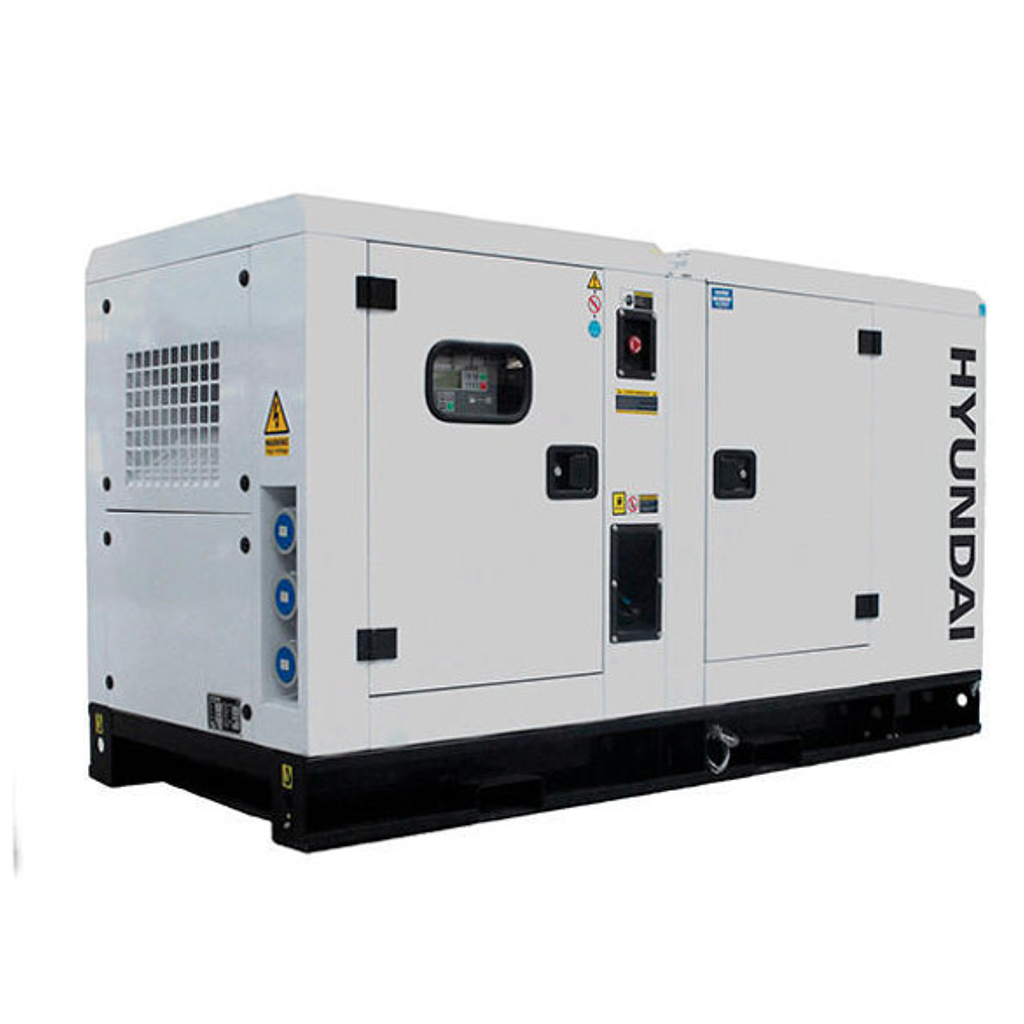

Generator
Model: DHY28KSE
Continuous Power Output (kVA/kW): 25/20
Standby Power Output (kVA/kW): 27.5/22
Power Factor: 0.8
Frequency (Hz): 50
Voltage (V): 230/400
Current (A): 37.98
ATS Connection Port: Yes
Fuel Tank Capacity (L): 78
Run Time at 70% Load (h): 14
Fuel Consumption at 100% Load (L/h): 7.4
Noise Level at 7m (dBA): 72
Total Weight (kg): 895
Dimensions (L×W×H) (mm): 2008×900×1130
Engine
Model: 4H3.0-G2
Speed (RPM): 1500
Fuel Type: Diesel
Configuration: 4 Cylinders, In-line
Displacement (L): 3
Compression Ratio: 18.5:1
Cooling System: Water-Cooled
Coolant Capacity (L): 5.8
Lubricating Oil Capacity (L): 6
Lubricating Oil Consumption (L/h): 0.039
Intake Air Flow (m³/min): 2.6
Exhaust Gas Flow (m³/min): 6.2
Exhaust Gas Temperature (°C): 550
Exhaust Back Pressure (KPa): 10
Alternator
Model: 184F
Alternator Power Output (kVA): 27.5
Phase: 3-Phase
Structure: Single Bearing
Power Factor (Cosφ): 0.8
Voltage Regulation: Automatic AVR with AS460
Protection Class: IP23
Insulation Class: H
Excitation System: Automatic
