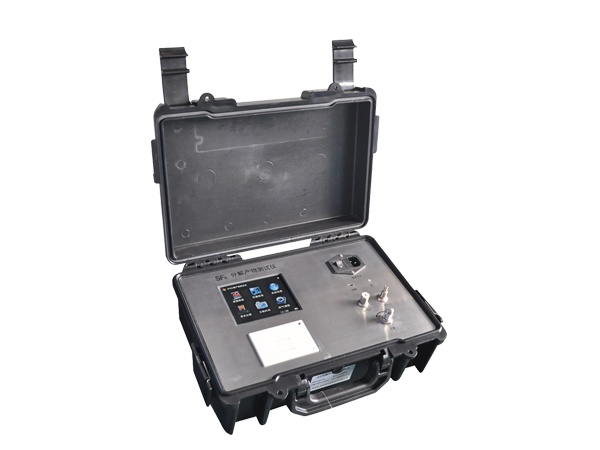

HV HIPOT GDFJ-II SF6 Gas decomposition products analyzer

Measuring range:

H2S:0~200µL/L

SO2: 0~200µL/L

HF:0~10µL/L optional

CO: 0~1000µL/L optional

Sensitivity: 0.1 µL/L

Sampling flow rate: 0.25 L/min±30 ml/min

Response time: 10~15 s

Intake pressure: ≤1.0 MPa

Sampling: Built-in flow valve, flow-meter

Working temperature: -20℃~55℃

Working humidity: ≤90%RH

Power: DC built-in rechargeable battery; AC 220V/50Hz

Storage: 100 sets test data

Printer: built-in printer

Output interface: USB interface

Dimension: 335*290*160 mm

Weight: 5.7 kg
