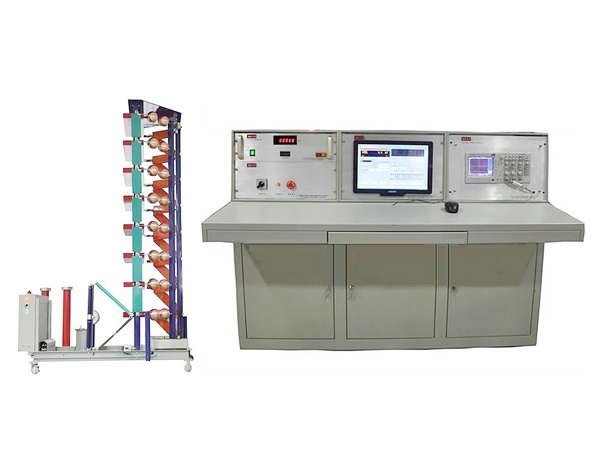

HV HIPOT GDCY Impulse Voltage Test System (100kV-7200kV)

Impulse voltage grade: 100kV-7200kV

Standard lightning wave: 1.2±30%/50±20%µS

Peak oscillation: <5%

Standard switching wave: 250±20%/2500±60%µS

Virtual front time of oscillating lightning wave: ≤15µS

Virtual front time of oscillating switching wave and virtual front time of oscillating switching impulse wave: 15µS-1mS

The minimum output voltage: ≥10%Un

Charging voltage instability: <±1%

Synchronizing range: ≥20%

Synchronous discharge error rate: <2%

Ignition range: 10%~100%

Working time:

≥70%UN Discontinuous work (charge-discharge 300s/time)

<70%nn Continuous work (charge-discharge 120s/time)

Generator efficiency: lightning wave (no load): ≥90%

Time to chopping: 2~5µS
