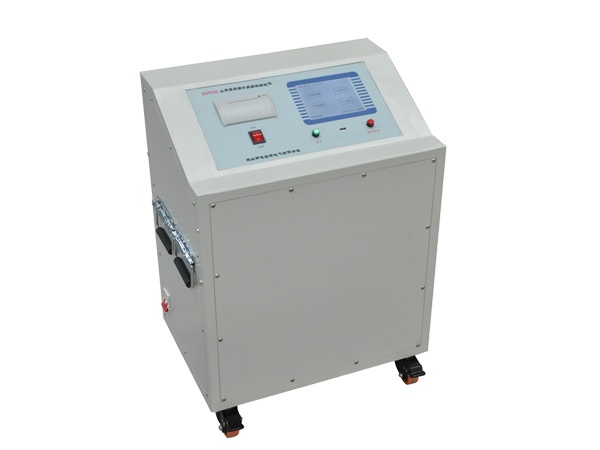

HV HIPOT GD6300 Capacitance and Dissipation Factor Tester (5000VA)

Use condition: -15℃~40℃; RH<80%

Anti-interference principle: Frequency conversion

Power supply:

- AC 220V±10%, generator is permitted.

- HV output: 0.5KV~18KV,0.1kV for step

- Accuracy: 2%

- Max. current (at 10kV): 500mA

- Max. current (at 18kV): 278mA-

Capacity: 5000VA

Resolution: tgδ: 0.001%; Cx: 0.001pF

Accuracy:

- △tgδ: ± (readings*1.0%+0.040%);

- △Cx: ± (readings*1.0%+1.00PF)

Measurement range:

Tgδ: No limited.

Cx:

- 15pF <Cx <500nF

- 17KV: Cx <55nF

- 10KV: Cx <160nF

- 5KV: Cx <500nF

Size: 500*350*670mm (L*W*H)

Storage: 200 groups
