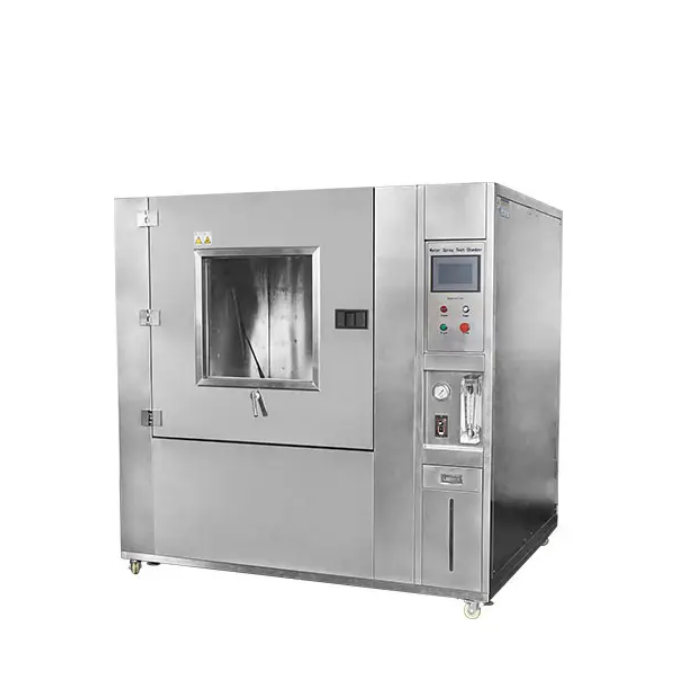

Huda HUD-E710-6 High Temperature & Pressure Water Test Chamber (IPX9K)

Internal dimension (W*D*H): 1000*1000*1000mm

External dimension (W*D*H): 1600*1250*2100mm

Spray water temperature: 80℃

Spray water pressure: 80 to 100bar (8000 to 10000Kpa)

Water flow: 14 to 16L/min

Spray water distance: 10 to 15cm

Spray water angle: 0°, 30°, 60°, 90°, each angle spray for 30 seconds

Sample turntable: 5±1rpm

Water spray interval time: 30 seconds (adjustable)

Water cycling system: Built-in chamber bottom for recycling

Controller: PLC touch screen

Chamber material: SUS304 stainless steel

Power source: 3-phase, AC380V±10%, 50Hz
