Detailed Product Description

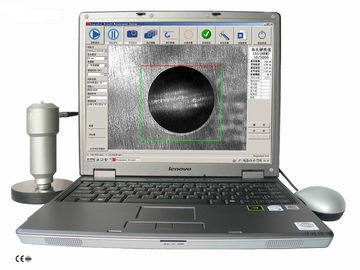

HUATEC Brinell indention tester can match any kind of Brinell hardness
tester. As an independent measurement system, it can measure the Brinell indention accurately, quickly,
reliably and movably. It is a new measuring method by using CCD camera to capture the indention image,
instead of reading diameter from optical microscope by operator then calculating the test value.
Test parameters include 3000kgf, 1500kgf, 1000kgf, 750kgf, 500kgf, 250kgf, 187.5kgf, 100kgf and 62.5kgf ;
Diameter of indenter include 10mm, 5mm, 2.5mm. Measuring range will be 3.18HBW~658HBW.
·Special software supplying simplest operation
·Both single testing and batch testing mode are available
·Tolerance setting, distinguishing and alarming
·Statistics values such as Max, Min, Avg, R and S are available
·Convert test result to other scales, such as HRC, HRB, HRA, HV, σb
· All test results and indention images are saved automatically
· Test report created in Microsoft EXCEL format, can be edit, copy, print as you will
· Software update freely
The standard configuration of the tester:
MODEL KDT-10M, KDT-10A,
· DELL Notebook PC * 1
· No.1 CCD camera * 1
· Power & USB module * 1
· Cables * 2
· Software disc * 1
· Soft dog * 1
· Shockproof suitcase * 1
· User’s guide * 1
The system can match any kinds of PC include notebook type and bench type
KDT-10M is the one by manual operation, KDT-10A is the one by automatic operation
