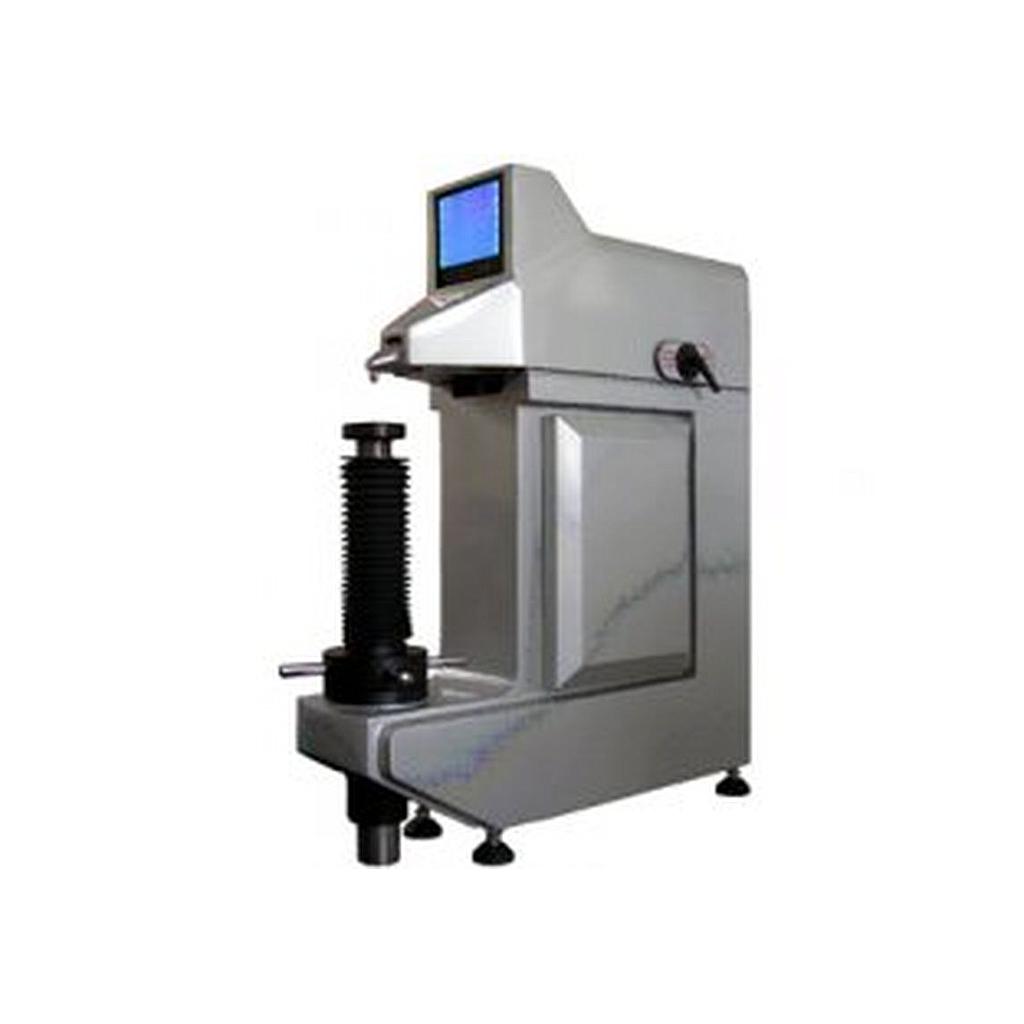

HUATEC HR3200 Advanced Digital Twin Rockwell Hardness Tester

Name: HUATEC HR3200 Advanced Digital Twin Rockwell Hardness Tester
Brand: HUATEC
Price: 9720 USD
Availability: OutOfStock

ManufacturerHUATEC(View more products from this manufacturer)

ModelHR3200

OriginChina

USD 9,720.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
Horizontal Protrudent Indenter Design, suitable also for internal and external testing.
Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm.
Modern design with Titanium metallic Silver finish
Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.
The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port.
Test value can be transformed to the value of HB, HV, HK and σb value.
The tester meeting all the following standard such as ISO 6508-2, ASTM E18.

Preload:29.4N(3kgf), 98.1N (10kgf)
Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf),
588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X,
HR30X, HR45X, HR15Y, HR30Y, HR45Y
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR,
HRS, HRV
Load dwell duration: 2～50s, can be set and stored
Resolution :0.1HR
Display:High definition backlight LCD
Operation:Menu selectable, Membrane keypad
Upper/lower limits setting & alarming
Data statistics: Avg., Max., Min., S, R available
Curved surface correcting automatically
Memory: Max 400 items of test results stored automatically
Data output: RS-232 to micro printer, USB port to external PC
Testing space:260mm in vertical, 150mm in horizontal
Dimensions: 710mm×210mm×830mm
Power supply:AC, 220V/110V, 50～60Hz, 4A
Net weight:110kg

Standard configuration
   Host machine   1
   Standard hardness block for A scale    1
   Standard hardness block for B scale     1
   Standard hardness block for C scale   1
   Standard hardness block for 30N scale   1
   Standard hardness block for 30T scale   1
   ball indenter (1/16″)   1
   120°cone diamond indenter   1
   Mounting screws for indenter   2
   Flat anvil   1
   “V ”shape anvil   1
   Power supply wire   1
   Screwdriver for indenter mounting   1
   Dust cover   1
Optional accessories:
   Short diamond indenter
   Chisel diamond indenter
   Slender diamond indenter
   1/8″ball indenter and spare steel ball
   1/4″ball indenter and spare steel ball
   1/2″ball indenter and spare steel ball
   φ225 anvil
   φ150 anvil
   Standard hardness block for other scales
   Micro printer
