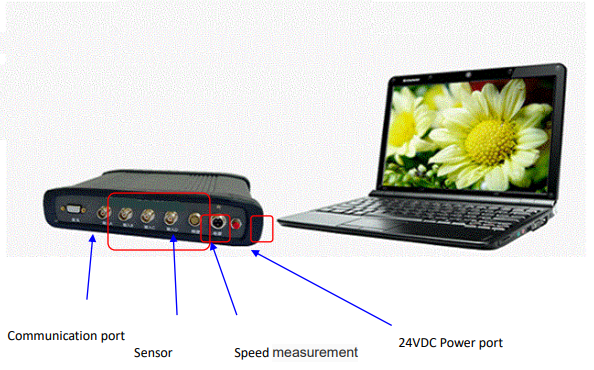

Analyzer specifications：
Spectrum range：0.5 Hz~25 kHz
Low frequency：0.17——100Hz
Rotating speed measurement：70~120,000 rpm/min
Vibration measurement range:
- Acceleration value: 250m/s2 0.1m/s2
- Velocity value: 200mm/s 0.1mm/s
- Displacement value: 5000um 1um
- Acceleration envelope: 25m/s2 0.1m/s2
- Voltage: 10 V 0.1 mV
Measurement accuracy: +_ 5%, 24bits A/D, Dynamic Range: 90dB
Select input sensor signal: velocity sensor; piezo-electric accelerometer; peak-peak transmitter sensor .etc
Power：24VDC
Dimensions：210×130×40mm, weight：1 kg
Analyzer Operating Environment temperature：-30°- 95°
Normal piezo-electric accelerometer temperature：-35°- 65°
High temperature piezo-electric accelerometer：-35°- 180°
Output: 485 port for communication with PC software
