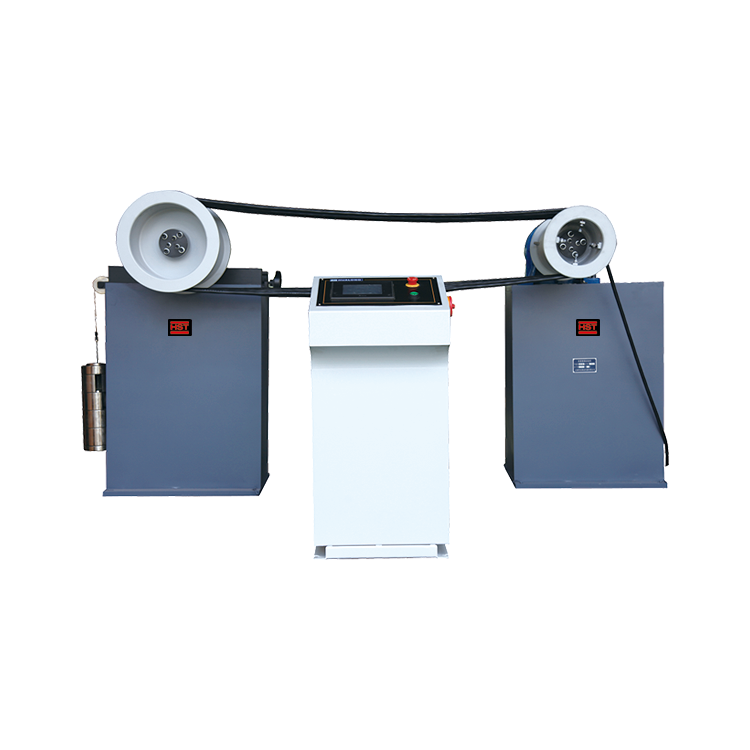

Application: intended to determine the ability of an optical fibre cable or cable element to withstand bending around a test mandrel such as U bend and S bend.
Mandrel diameter (Drive): mm: D200, D300
Mandrel diameter (Slave): mm: D300
Positioning range of slave mandrel: mm: 0-250
Max. bending cycles: Cycles: 1-9999
Winding frequency: Cycles/min: 2-20 (Clockwise / Anticlockwise)
Winding velocity: r/min: 12
Mass of weights for applying tension: : Weight bracket: 5kg
1 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment.
Dimensions (L*W*H):
Working frame: mm: 1000*720*1300
Control console: mm: 400*300 * 800
Power: 3-phase 4-wire, 50Hz, 1kW.
