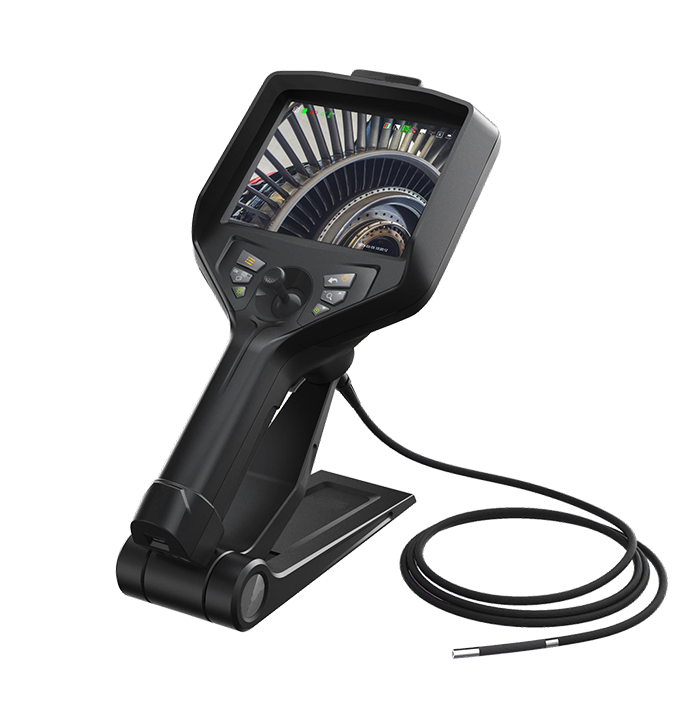

Hoyamo VU-510 Videoscope (Φ6mm, 1280×720)

Ultraviolet Probe System:

Probe Diameter: Φ6mm

Camera Pixels: 1MPixel

Probe Resolution: 1280×720

Video Resolution: 1280×720

DOF: 10-100mm

FOV: 120°

Viewing Direction: Direct-view /90° Sideview

Light Source:

UP1: Direct-view probe: Optic fiber UV illumination

UP2: Direct-view probe: Fiber UV illumination + LED White Front illumination

UP3: Sideview Probe: LED UV illumination

Illuminance: 1200uw/cm2

Tube Length: 1.5/2.0m/3.0 Meters

Articulation: 360° joystick-control articulation

Bending Angle: Maximun:190°

Monitor Display System:

Display: VU510 5.1" color IPS display, all sight viewing angle, sunshade design

Display Resolution: 1280*960

Zoom In/Out: 8X

Image Effect: Negative film/ black & white/standard

Temperature Indication: High temperature alarm （optional）

IP Level: Probe/tube: IP67

Software Function: Playback, image parameters adjust and rotate

Image/Video Format: JPEG/MOV

Data Port: HDMI video output, Micro USB port with water &dust proof device

Working Time: ≥8h

Battery Capacity: 3.7V，3200mAh×2

Power Charge: DC5V, 1A

Weight: ≤0.8Kg

Wi-Fi Transmission: Image transmission to Mobile phone, computer by Wi-Fi(optional)

Accessories: Standard Configuration:

Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
