Measurement Range:
X: 200mm
Y: 200mm
Z: 70mm
FOV:
High Precision: 18.3mm x 13.7mm
Large Field: 80mm x 60mm
Repeatability:
High Precision: ±1μm
Large Field: ± 2.5μm
Mini. Unit: 0.1μm
Accuracy:
High Precision:
Without Stitching: ±2 μm
With Stitching: 4+L/50μm
Large Field:
Without Stitching: ±5 μm
With Stitching: 7+L/50μm
Weight: 50KG
Optic System:
Camera: 1200M Pixel; 500M Pixel
Lens: Dual Telecentric Lens
Profile illumination: White Light
Transmission illumination: Green Light
Loading Capacity: 5KG
System: AI-Image (Self-Developed)
Power Supply: 220V±10%,50Hz
Working Environment: Temperature: 20±3℃, Humidity: 30-80%, Vibration: ＜0.002g,15HZ
Dimension: 422x625x748

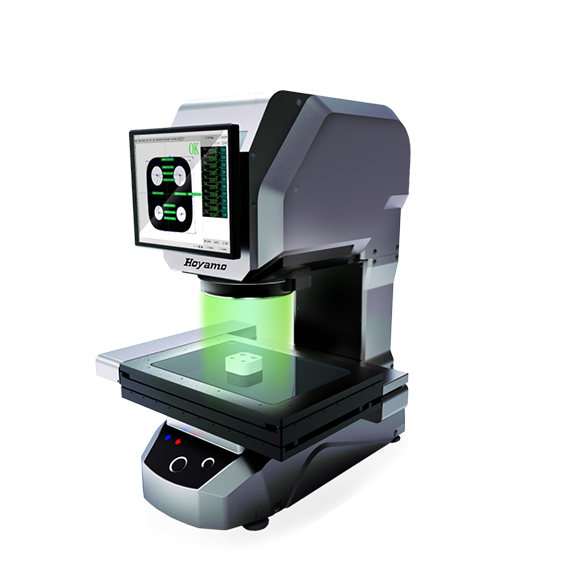

Introduction: Instant Vision Measurement System IVS-6080 usus Dual Telecentric High Resolution Optical Lens, combines high precision image analysis algorithm, and adopts One-Touch Measuring Principle. Under CNC Mode, only to press the start-button, the system can instantly automatically according to the shape of parts recognize the measuring object, match the template, build measuring evaluation and report, completing One Button instant precision measurement.
Advantage:
Fast Measurement: One button can measure the products in the field of vision.
Easy Operation: The software interface is simple and easy to understand, and anyone can get accurate test results.
Auto-Management: The measurement results are automatically saved when the measurement is completed, and the test report can be generated by clicking the button.
