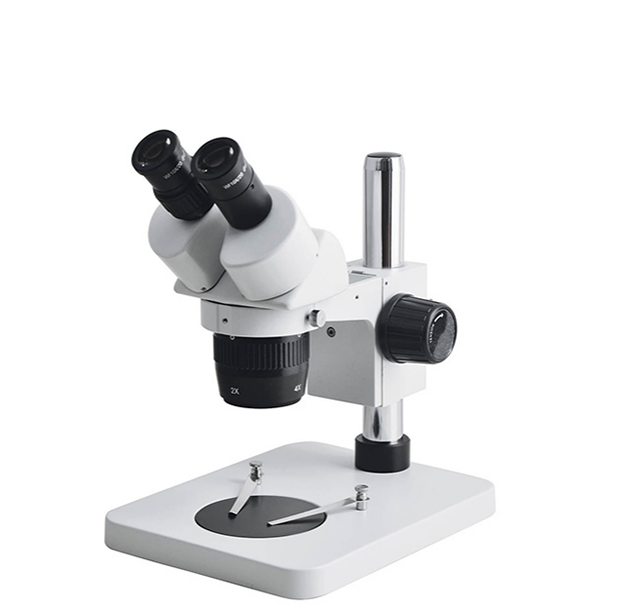

Observation Head: 45°decline, 360°rotate, Pupil distance 54---76mm, Unilateral diopter adjustment ±5°
Eyepiece: Standard WF10X20,High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece: WF10X/20mm，WF15X15，WF20X10，WF25X9，WF30X8
Magnification: Standard Amplification Rate 20X/40X Can selec other eyeglasses and objective lenses Scalable 10X---120X fixed zoom
Objective: Shift zoom objective combination 2X/4X, 1X/2X, 1X/3X
Auxiliary Objective: 0.5X，0.75X，1X，2X (Optional)
Working Distance: 100mm
Focusing Bracket: 76mm diameter, 32mm pole size
Stand: TO column type small flat base (Standard) Other base can be selected, see the base series for details
Illumination: Optional LED Illumination
Plate: Black/ White plate
Dimension: 200mm(W)X273mm(D)X280mm(H)
Production Feature：
Unique optic design;
With long working distance and field of depth;
Horizontal zoom knob, easy operation;
Widely used for medical service, agriculture, geology, electronic precision mechanical industry and department.
