SENSOR SPECIFICATIONS
GASES: STANDARD MEASURING RANGE/ RESOLUTION
OXYGEN (O2): 0-25% vol. /0.1% vol.
COMBUSTIBLE GASES (LEL): 0-100% LEL /1% LEL
COMBUSTIBLE GASES (IR)*: 0-5.00% vol./ 0.01% vol.
HYDROGEN SULFIDE (H2S): 0-100 ppm /1 ppm / 0.1 ppm
CARBON MONOXIDE (CO): 0-2,000 ppm/ 1 ppm
CARBON MONOXIDE (LOW H2) (CO-H): 0-1,000 ppm/ 1 ppm
SULFUR DIOXIDE (SO2): 0-100 ppm/ 0.1 ppm
HYDROGEN (H2): 0-2,000 ppm/ 5 ppm
CARBON DIOXIDE (CO2): 0-50,000 ppm/ 10 ppm
AMMONIA (NH3): 0-100 ppm/ 1 ppm
VOLATILE ORGANIC COMPOUNDS (VOC) **: 0-1,000 ppm/ 1 ppm
CHLORINE (CL2): 0-20 ppm/ 0.1 ppm
NITROGEN DIOXIDE (NO2): 0-50 ppm/ 0.1 ppm
HYDROGEN CYANIDE (HCN): 0-100 ppm/ 0.1 ppm
NITROGEN MONOXIDE (NO): 0-200 ppm/ 1 ppm
TECHNICAL SPECIFICATIONS
SIZE: 5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm
WEIGHT: 14.5 oz. / 411 g (with clip)
OPERATING TEMPERATURE: -4 to +131° F / -20 to +50° C
HUMIDITY: 5 - 95% RH (non‑condensing) continuous
INGRESS PROTECTION: IP66/68
ALARMS AND TYPE: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)
SELF-TEST: Activated detectors automatically perform one internal diagnostic test every 24 hours (sensors, battery, and circuitry).
TYPICAL BATTERY LIFE: 18 hours (14 hours with PID or IR sensor) @ -4° F / -20° C
PUMP DRAW: Sample from up to 75 ft. / 22.9 m
CONNECTED WORKER
• Bluetooth™ Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App
• Honeywell TouchConnect™ – Easy ability to enter Bump or Calibration mode or change Set-Points
EVENT LOGGING: Up to 16 hours at 15-second intervals
Includes:

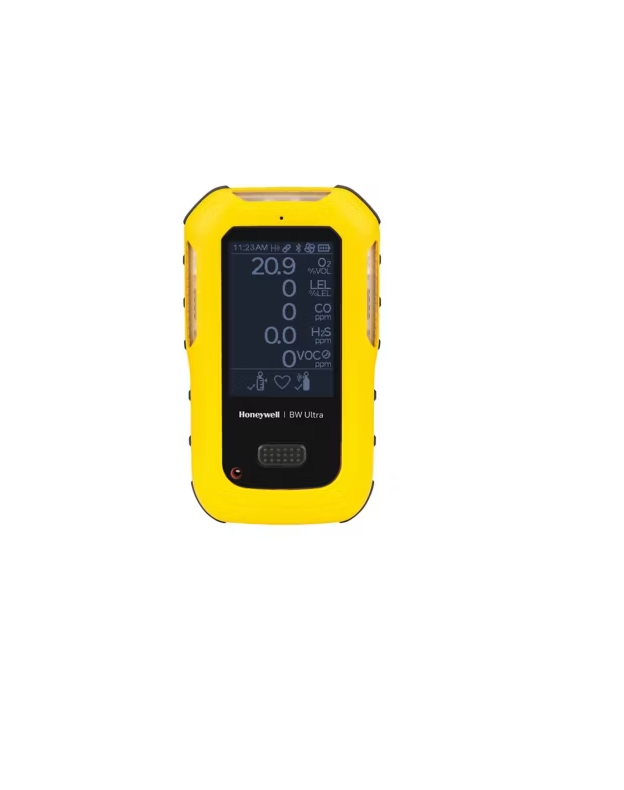

Honeywell BW™ Ultra gas detector
Quick Reference Guide
Battery (factory-installed)
Screwdriver telescope with double end
Charging adapter
3m PVC tube
1 Dust porous filter 7/16"
2 Fitting mini quick connector to 1/8"
5 Pump filters
2 Fitting male Luer-Lock to 1/8"
USB memory stick containing user manuals
1 screen protector (factory-installed)
