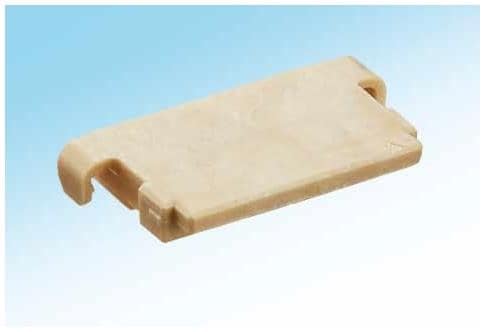

Pitch: 1.7 mm
Unit Weight: 77 mg
Housing Color: Beige
Contact Gender: Socket (Female)
Current Rating: 3.5 A
Mounting Angle: Vertical
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 50 V
Wire Gauge Max: 24 AWG
Wire Gauge Min: 28 AWG
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Wire Gauge Range: 28 AWG to 24 AWG
Termination Style: Crimp
Number of Positions: 7 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
