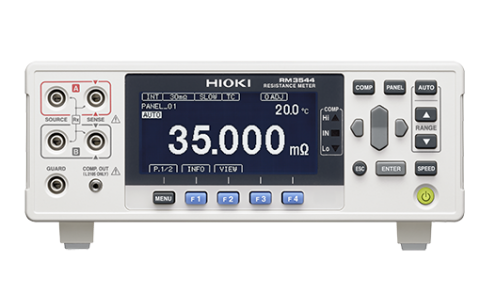

HIOKI RM3544-01 Resistance meter

Name: HIOKI RM3544-01 Resistance meter
Brand: HIOKI

ManufacturerHIOKI(View more products from this manufacturer)

ModelRM3544-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications
- Resistance range:
+ 30mΩ(max 35mΩ/resolution 1μΩ)
+ 3MΩ (max 3.5MΩ/resolution 100Ω)
- Accuracy: ±0.020 % rdg. ±0.007 % f.s.
- Testing current:
+ With range 30mΩ: 300mA DC
+ With range 3MΩ: 500nA DC
- Open-teminal voltage: 5.5V DC max
- Temperature measurement:
+ -10.0 to 99.9°C
+ Accuracy: ±0.50°C
+ Temperature Z2001
- Measurement:
+ Fast: 50Hz: 21ms, 60Hz: 18ms
+ Medium: 101ms
+ Slow: 401ms
- Function:
+ Temperature correction, comparator(ABS/REF%)
+ Display digit count selection function 4 digits, 5 digits
+ Auto hold, avẻaging
- Communication interface:
+ RS-232C, printer (RS232C), USB
+ Communication monitor function, output data function
- Power supply:
+ 100 to 240 V AC, 50/60 Hz
+ rate power consumption: 15VA
- Dimensions: 215x80x166mm
- mass: 1kg
- Supplied Accessories:
+ Power cord x1, Clip type lead L2101 ×1,Male EXT I/O connector ×1
+ Intruction manual, Application disc x1, Cable USB x1, fulse x1
- The warranty period: 12 month

Resistance range	30 mΩ (35.000 mΩ display Max., 1 μΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current	[at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage	5.5 V DC max.
Temperature measurement	-10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2001 and RM3544/RM35440-01 combined accuracy)
Measurement speed	FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms)
Display refresh rate	N/A
Functions	Temperature correction, comparator (ABS/REF%), key-lock (OFF, menu lock, all lock), display digit count selection function (5 digits/ 4 digits), automatic power supply frequency settings (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel store/panel load
Memory storage	N/A
Communication interfaces	[Only RM3544-01] Select from RS-232C, PRINTER (RS-232C), or USB Remote function, communications monitor function, data output function
Power supply	100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA
Dimensions, mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D mm [RM3544] 0.9 kg (31.7 oz) [RM3544-01] 1.0 kg (35.3 oz)
Supplied accessories	[RM3544] Power cord ×1, Clip type lead L2101 ×1, Instruction manual ×1, Extra fuse ×1 [RM3544-01] Power cord ×1, Clip type lead L2101 ×1, Male EXT I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Extra fuse ×1
