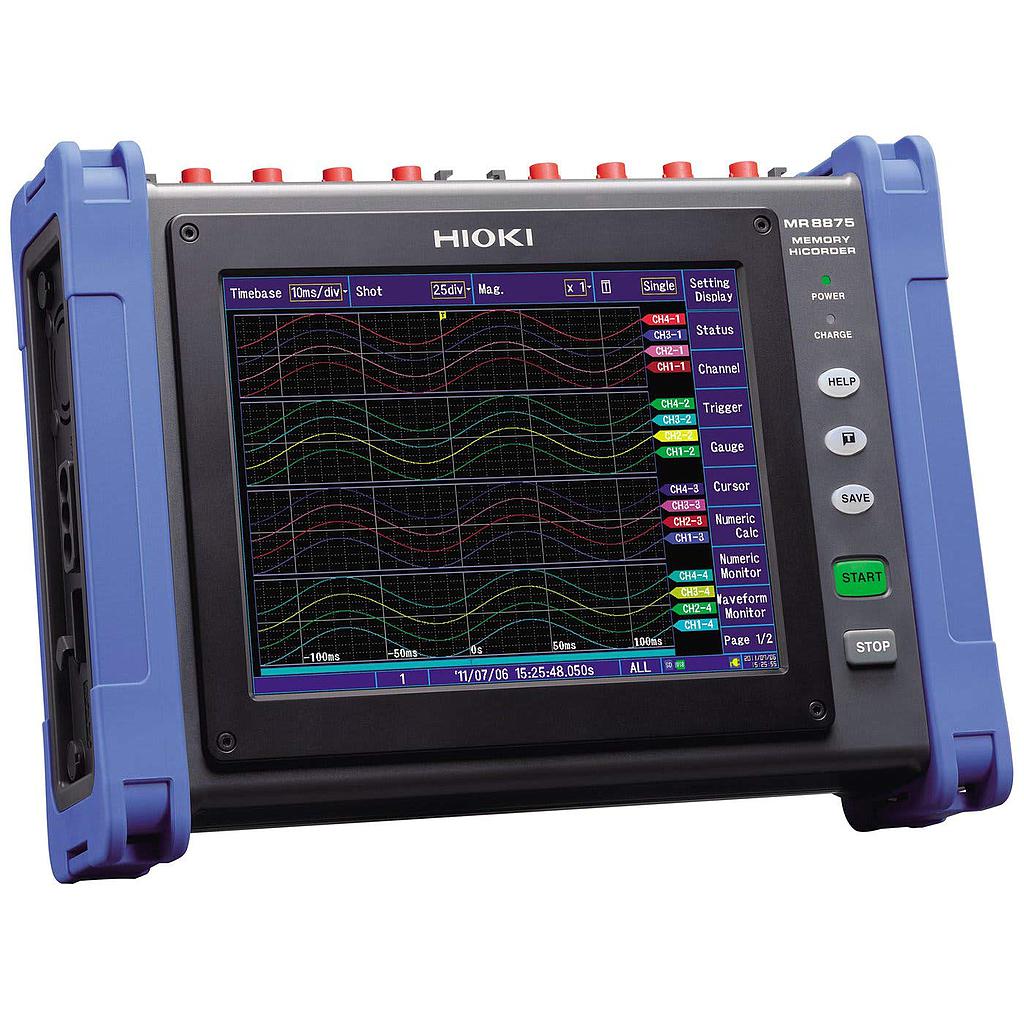

Specification
- Number of input units: Up to 4 slots
- Number of channels:
+ Max. 16 analog channels
+ standard 8 logic channels
+ 2 pulse channels
- Measurement ranges: 5 mV to 10 V/div, 11 ranges, resolution : 1/1250 of range
- Max. rated voltage:
+ Between terminals: 150V DC
+ Between terminal to earth: 100V AC, DC
- Frequency characteristics: DC to 100 kHz
- Time axis: 200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible
- Measurement functions: High-speed function, Real-time calculation between channels, FFT calculation, or other functions
- Storage memory capacity: Total 32 M-words
- Removable storage: SD Card slot × 1, USB 2.0 memory
- Display: Touch-panel operation 8.4-inch SVGA-TFT color LCD
- Communication interfaces: LAN, USB
- Power supply:
+ AC ADAPTER Z1002: 100 to 240 V AC (50/60 Hz), 56 VA
+ BATTERY PACK Z1003: 7.2 V DC, 36 VA
+ External DC Power: 10 to 28 V DC, 56 VA
- Dimensions, mass: 298 mm (11.73 in) W × 224 mm (8.82 in) H × 84 mm (3.31 in) D, 2.4 kg
- Supplied accessories: Instruction Manual ×1, Measurement Guide ×1, AC ADAPTER Z1002 ×1, Protection sheet ×1, USB cable ×1, Shoulder Strap ×1, Application Disk
- The wararnty period: 12 month
| Number of input units | Up to 4 slots |
| Number of channels | Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels Note: For analog units, channels are isolated from each other and from the MR8875’s GND. For CAN unit ports or standard logic terminals or standard pulse terminals, all channels have common GND. |
| Measurement ranges (20 div full-scale) |
5 mV to 10 V/div, 11 ranges, resolution : 1/1250 of range (when using the MR8901) |
| Max. rated voltage | Between terminals: 150V DC Between terminal to earth: 100V AC, DC (when using the MR8901) |
| Frequency characteristics | DC to 100 kHz (-3dB, when using the MR8901) |
| Time axis | 200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible |
| Max. sampling rate | [When using MR8901] 500 kS/second (2 μs period, all channels simultaneously) [When using MR8902] 10 msec (all input channels are scanned at high speed during every recording interval) [When using MR8903] 200 kS/second (5 μs period, all channels simultaneously) External sampling: 200 kS/second (5 μs period) |
| Measurement functions | High-speed function (high speed recording), Real-time calculation between channels, FFT calculation, or other functions |
| Storage memory capacity | Total 32 M-words (memory expansion: n/a, 8 MW each input unit) Note: 1 word = 2 bytes, therefore 32 Mega-words = 64 Mega-bytes. Note: Storage memory can be allocated depending on the number of channels used at each input unit |
| Removable storage | SD Card slot × 1, USB 2.0 memory |
| Display | Touch-panel operation 8.4-inch SVGA-TFT color LCD (800 × 600 dots) |
| Communication interfaces | LAN: 100BASE-TX (DHCP, DNS supported, FTP server/ client, WEB server, send E-mail, command control) USB: USB2.0 compliant, series mini-B receptacle ×1 (setting / measure with communication command, or file transfer SD card to PC), series A receptacle ×2 (USB memory, USB mouse/ key-board) |
| Power supply | 1) AC ADAPTER Z1002: 100 to 240 V AC (50/60 Hz), 56 VA 2) BATTERY PACK Z1003: 7.2 V DC, 36 VA, continuous operation times: 1 hour with back light ON (AC adapter has priority when used in combination with battery pack), Charges while installed in the MR8875, recharging time: 3 hours 3) External DC Power: 10 to 28 V DC, 56 VA, (please contact your HIOKI distributor for connection cord) |
| Dimensions, mass | 298 mm (11.73 in) W × 224 mm (8.82 in) H × 84 mm (3.31 in) D, 2.4 kg (84.7 oz), (excluding input units and the BATTERY PACK Z1003) Reference data: 3.47 kg/ 122.4 oz (including the MR8901 ×4 units and the BATTERY PACK Z1003) |
| Supplied accessories | Instruction Manual ×1, Measurement Guide ×1, AC ADAPTER Z1002 ×1, Protection sheet ×1, USB cable ×1, Shoulder Strap ×1, Application Disk (WaveViewer Wv, communication commands table, CAN Editor) ×1 |
