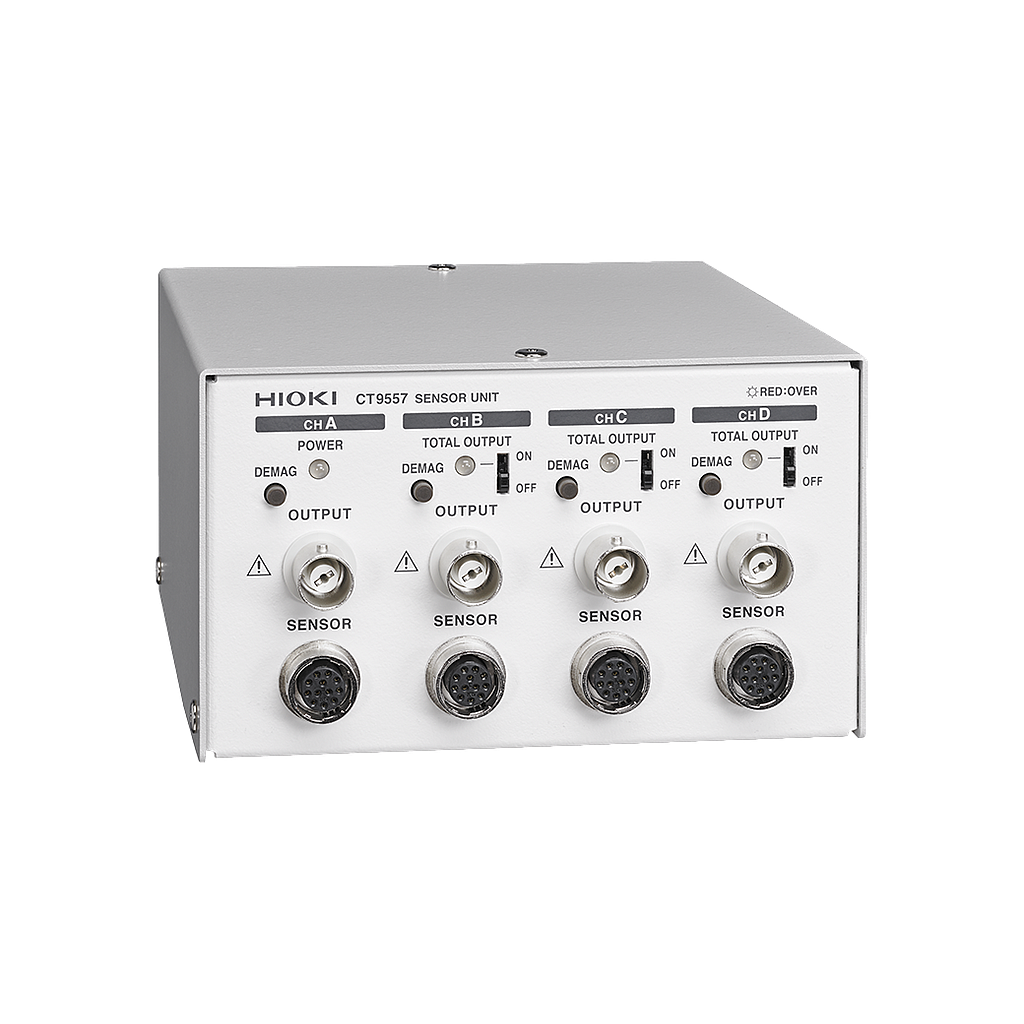

HIOKI CT9557 SENSOR UNIT

Connectable current sensors : Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)

*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal

Output Terminal : BNC Terminal

Output voltage : Waveform output/ Total waveform output: 2 V f.s.

Total RMS output: 2 V DC f.s.

Output resistance : 50 Ω

Operating temperature range : -10 °C to 50 °C (14 °F to 122 °F)

Power supply: AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA)

External power supply (10 to 30 V DC; maximum rated power: 60 VA)

Dimensions and mass : 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz)

Accessories :AC Adapter Z1002 ×1, Power cord ×1
