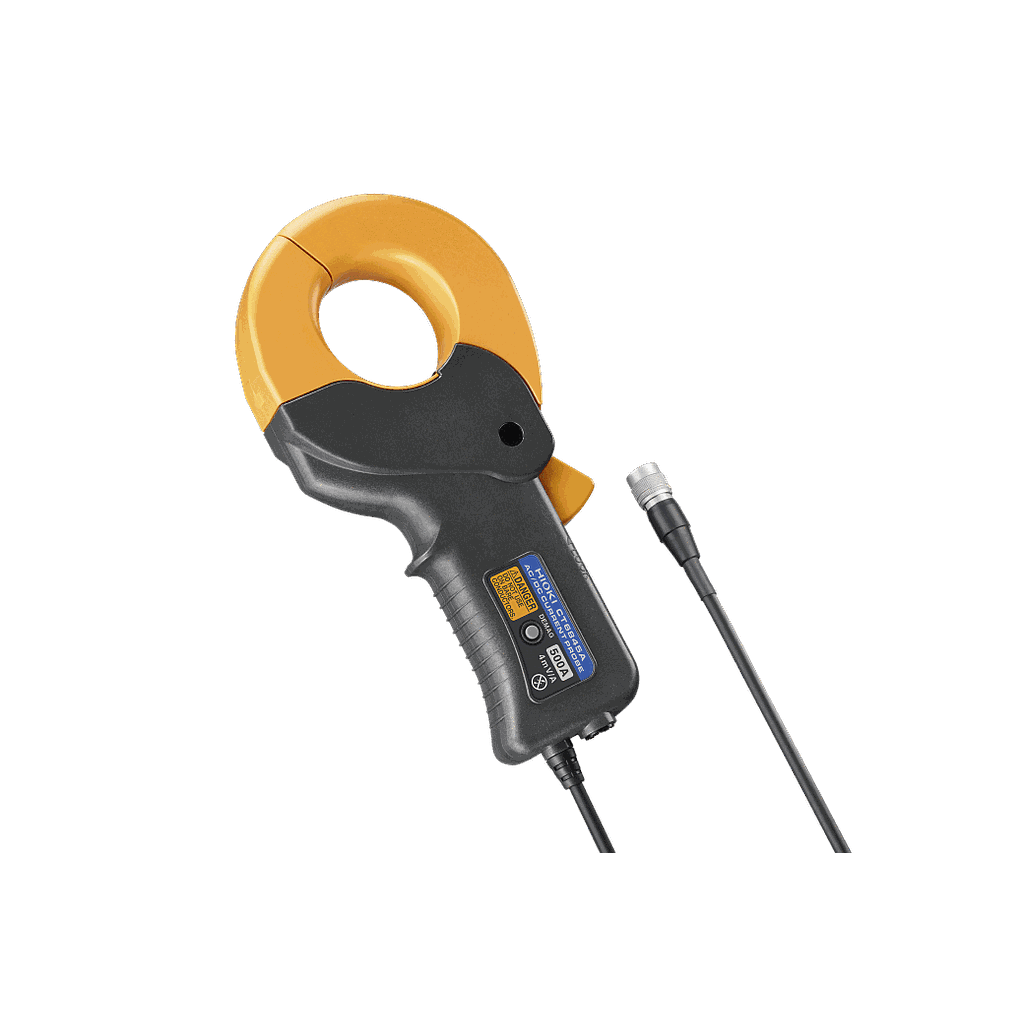

HIOKI CT6845A AC/DC CURRENT PROBE

Rated current : 500 A AC/DC

Frequency bandwidth : DC to 200 kHz

Diameter of measurable conductors : Max. φ 50 mm (1.97 in.)

Max. allowable input : ±1500 Apeak

(Within 20 ms in an environment of 40°C/104°F or less)

Output voltage : 4 mV/A

Output resistance : 50 Ω ± 10 Ω

Accuracy (amplitude) ±(% of reading + % of full scale)DC: 0.2% + 0.02%

DC < f ≤ 100 Hz: 0.2% + 0.01%

Linearity : ±20 ppm Typical

Common-Mode Voltage Rejection Ratio

(CMRR): DC to 1 kHz：150 dB or greater

1 kHz to 10kHz：130 dB or greater

10 kHz to 100 kHz：100 dB or greater

(effect on output voltage and common mode voltage)+F56

Automatic phase correction : Automatically performs phase correction when connected to PW8001

Operating temperature, humidity: -40°C to 85°C (-40°F to 185°F), 80% RH or less

Standards : Safety IEC 61010-2-032:2012/EN 61010-2-032:2012　Type D

EMC IEC 61326-1:2012/EN 61326-1:2013

Withstand voltage : AC 4,260 V

Rated power supply voltage : ±11 V to ±15 V

Max. rated power : 7 VA or less (When measuring 500 A/55 Hz with ±12 V power supply)

Dimensions and mass : Approx. 238 mm W × 116 mm H × 35 mm D

(approx. 9.37 in. W × 4.57 in. H × 1.38 in. D), 860 g (30.3 oz.)

Cable length : Approx. 3 m (9.84 ft.)

Included accessories : ・Markup bands（×6）

・Carrying case

・Instruction manual
