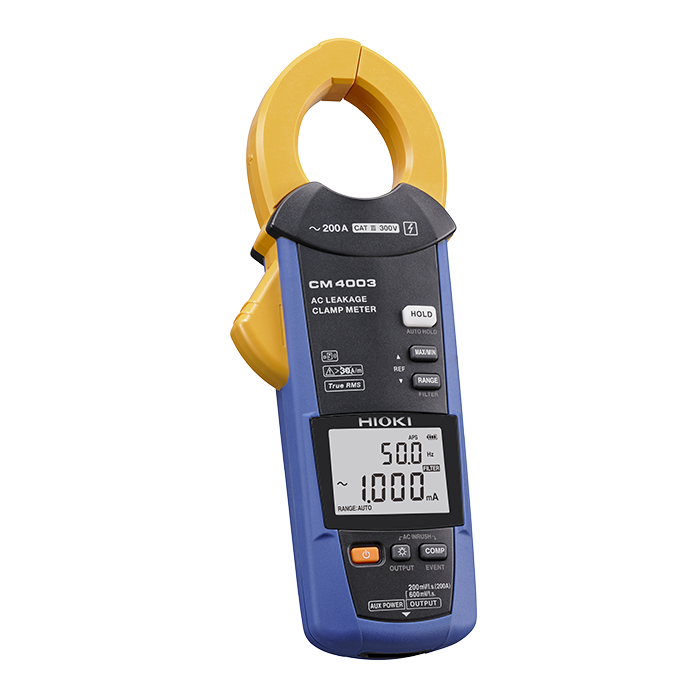

HIOKI CM4003 AC Leakage Clamp Meter (6.000mA~200.0A; True RMS)

AC current range:

- 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS

- Basic accuracy 45Hz-400Hz: ±1.0%rdg ±5dgt (6.000mA to 6.000A), ±1.5%rdg ±5dgt (60.00A, 200.0A)

- Basic accuracy 15Hz-45Hz, 400Hz-2kHz: ±2.0% rdg ±5 dgt

- Defined accuracy range: 0.060 mA to 200.0 A

AC Voltage range: N/A

Frequency range: 15.0Hz to 2000Hz

Crest factor: 3 (other than 200.0A range), 1.5 (200.0A range)

Filter function: Cut off frequency: 180Hz±30Hz at filter ON (-3dB)

Output function: RMS (RMS value output), WAVE (waveform output)

Other functions: Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement

Display: Display refresh rate: 5 times/s

Power supply:

- AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)

- AC Adapter Z1013 (5 V DC, 2.6 A)

Core jaw diameter: φ 40 mm (1.57 in.)

Dimensions and mass: 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)

Included accessories:

- Connection cable L9097×1

- USB cable ×1

- Carrying case C0203×1

- Instruction manual ×1

- Operating precautions ×1

- AA-size alkaline battery (LR6) ×2

Datasheet
