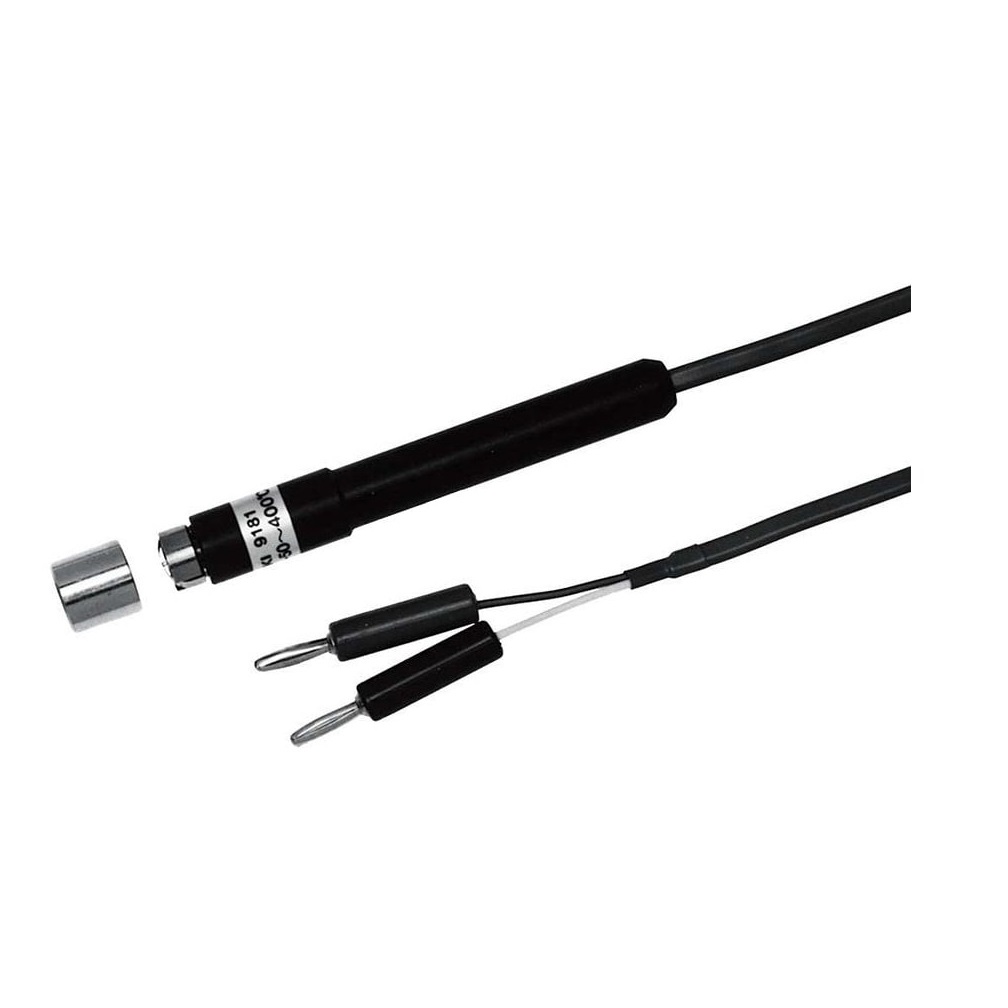

HIOKI 9181 Temperature Probe (Type K, for Hioki 3441, 3442)

Temperature Probe for Temperature HiTester 3441, 3442

Material type: K type thermocouple (Chromel / Almel)

Contact type: Grounded

Tolerance:

±2.5°C (±4.5°F ) [(T-Ts) ≤ 100°C (180°F )]

−0.035×T°C~+2.5°C [100°C (180°F ) < (T-Ts)]

T: measurement temp. (-50°C~400°C)

Ts: environment temp. (0°C~50°C)

Response (90%): About 3 sec

Size of Sheath (mm), (inch): φ 13 (mm), φ 0.51 (in)

Compensation lead: Conventional type (-20~90°C, -4~194°F), 1m (3.28 ft)

Grip heat resistance: 150°C (302°F), Grip size φ 13 × 100 mm (φ0.51 in × 3.94 in)

Measurement temperature: −50~400°C, –58~752°F

Outline Drawing

Datasheet
