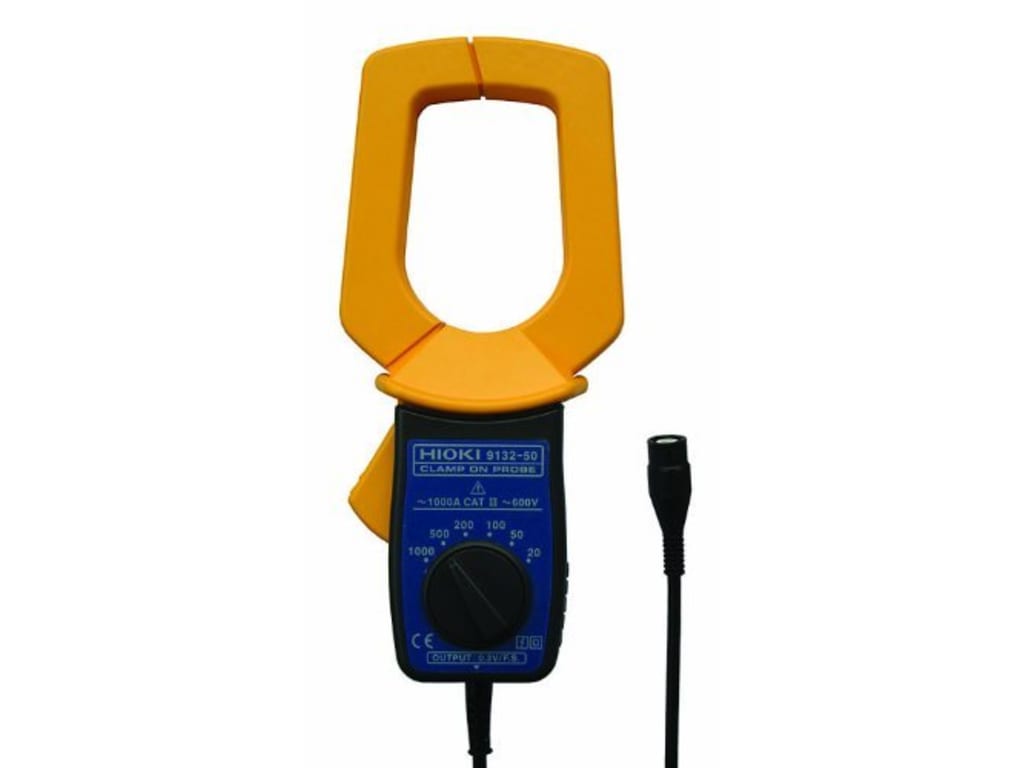

Hioki 9132-50 AC CURRENT SENSOR (20A to 1000A AC)

- Rated current 20 A to 1000 A AC, 6 ranges
- Accuracy ±3 % rdg. ±0.2 % f.s. (45 to 66 Hz)
- Frequency characteristics Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg.
- Output rate 0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
- Max. allowable input 1000 A rms continuous (all ranges)
(For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)
- Max. rated voltage to earth 600 Vrms (50/60 Hz, CAT III)
- Core diameter φ55 mm (2.17 in), or 20 mm (0.79 in) × 80 mm (3.15 in) busbar
- Dimensions and mass 100 mm (3.94 in)W × 224 mm (8.82 in)H × 35 mm (1.38 in)D, 600 g (21.2 oz), cord length: 3 m (9.84 ft)
- Accessories Instruction manual ×1

manual

- Rated current    20 A to 1000 A AC, 6 ranges
- Accuracy    ±3 % rdg. ±0.2 % f.s. (45 to 66 Hz)
- Frequency characteristics    Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg.
- Output rate    0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
- Max. allowable input    1000 A rms continuous (all ranges)
(For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)
- Max. rated voltage to earth    600 Vrms (50/60 Hz, CAT III)
- Core diameter    φ55 mm (2.17 in), or 20 mm (0.79 in) × 80 mm (3.15 in) busbar
- Dimensions and mass    100 mm (3.94 in)W × 224 mm (8.82 in)H × 35 mm (1.38 in)D, 600 g (21.2 oz), cord length: 3 m (9.84 ft)
- Accessories    Instruction manual ×1
