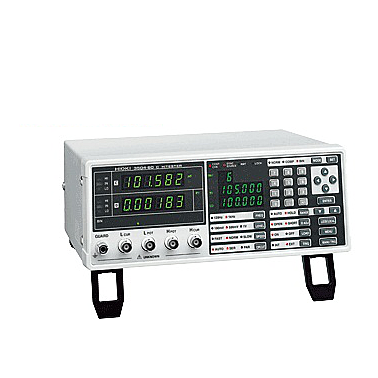

SPECIFICATIONS
- Measurement parameters: Cs, Cp (capacitance), D (loss coefficient tan δ)
- Measurement range: Cs, Cp (capacitance), D (loss coefficient tan δ)
- Basic accuracy:
(typical value) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
Measurement accuracy = Basic accuracy × B × C × D × E, B to E is coefficient
- Source frequency: 120Hz, 1kHz
- Measurement signal level:
100mV (3504-60 only), 500mV, 1V rms
Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz)
- Output resistance: 5Ω
- Display: LED (six digits, full scale count depends on measurement range)
- Measurement times: 2ms typical (1 kHz, FAST mode)
- Function:
Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C (all models standard)
- Power supply: Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 110VA max.
- Dimensions, mass: 260mm(10.24in)W × 100mm(3.94in)H × 220mm(8.66in)D, 3.8kg(134.0oz)
- Supplied accessories: Power cord(1), Fuse(1)
- The warranty period: 12 month
| Measurement parameters | Cs, Cp (capacitance), D (loss coefficient tan δ) |
| Measurement ranges | C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99000 |
| Basic accuracy | (typical value) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016 Measurement accuracy = Basic accuracy × B × C × D × E, B to E is coefficient |
| Source frequency | 120Hz, 1kHz |
| Measurement signal level | 100mV (3504-60 only), 500mV, 1V rms Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz) Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz) Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz) |
| Output resistance | 5Ω (In open terminal voltage mode outside of the CV measurement range) |
| Display | LED (six digits, full scale count depends on measurement range) |
| Measurement times | 2ms typical (1 kHz, FAST mode) Actual measurement time depends on measurement configuration settings |
| Function | 4-terminal contact check function (3504-60 only) BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C (all models standard), GP-IB (3504-50, 3504-60) |
| Power consumption | Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 110VA max. |
| Dimensions, mass | 260mm(10.24in)W × 100mm(3.94in)H × 220mm(8.66in)D, 3.8kg(134.0oz) |
| Supplied accessories | Power cord × 1, Spare fuse × 1 |
Catalog
3506, 3505, 3504-60, 3504-50, 3504-40
product catalog.pdf (1.1 MB) (2008-06-30 updated)
