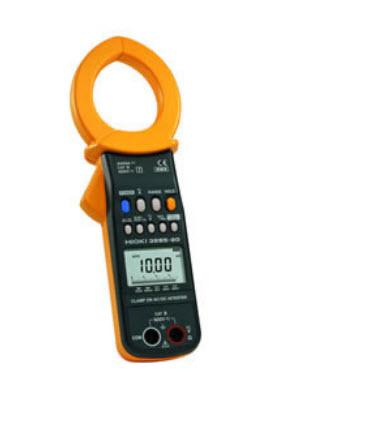

HIOKI 3285 CLAMP METER (2000A)

DC current: 200.0/ 2000 A, Basic accuracy: ±1.3 % rdg. ±3 dgt.
AC current: 200.0/ 2000 A (10 Hz to 1 kHz, True RMS),
Basic accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt.
DC voltage: 30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC voltage: 30.00 V to 600 V, 3 ranges (10 to 1 kHz, True RMS),
Basic accuracy 45-66 Hz: ±1.0 % rdg. ±3 dgt.
Crest factor: 2.5 or less (1.42 at 2000 A, 1.7 at 600 V)
Monitor, Analog output: DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 15 kHz bandwidth (±3dB)
Frequency: 1.00 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt.
Other functions: AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero
Display: Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph)
Power supply: 6F22 (Stacked manganese battery) ×1, Continuous use: 25 hours, or AC adapter 9445-02/-03
Core jaw dia.φ 55 mm (2.17 in)
Dimensions and mass: 62 mm (2.44 in) W × 260 mm (10.24 in) H × 39 mm (1.54 in) D, 540 g (19.0 oz)
Accessories: Test Lead L9207-10 ×1, Carrying Case 9345 ×1, Hand strap ×1, 6F22 (Stacked manganese battery) ×1, Instruction manual ×1
