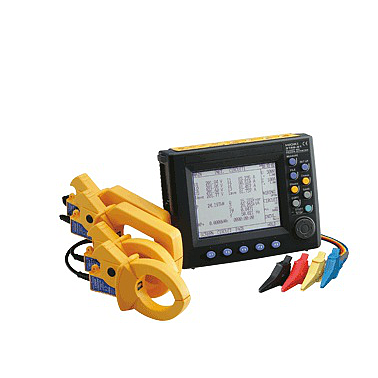

| Measurement line & number of circuits | Single-phase 2-wires (4 circuits), Single-phase 3-wires (2 circuits), Three-phases 3-wires (2 or 1 circuit), and Three-phases 4-wires (1 circuit) Note: 50 or 60 Hz, and that share the same voltage line |
| Measurement items | Voltage, Current, Active/ reactive/ apparent power, Active/ reactive power integration, Power factor, Frequency, Harmonic waveform value (up to 40th order) |
| Voltage ranges | 150.00 V to 600.00 V AC, 3 ranges |
| Current ranges | 500.00 mA to 5.0000 kA AC (depends on current sensor in use) |
| Power ranges | 75.000 W to 900.00 kW (depends on combination of voltage, current range, and measurement line) |
| Basic accuracy | AC Voltage: ±0.2 % rdg. ±0.1 % f.s. AC Current: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy (at power factor = 1) CLAMP ON SENSOR 9661: ±0.3 % rdg. ±0.01 % f.s. (different from each model) |
| Measurement method | Digital sampling, PLL synchronization or 50/60 Hz fixed clock |
| Basic accuracy | Active power: ±0.2% rdg. ±0.1% f.s. + clamp-on sensor accuracy (at 45 to 66 Hz) |
| Display refresh rate | 2 times /sec (except when using a PC card while accessing the internal memory, or when performing RS-232C communications) |
| Data save interval | Standard interval: 1 sec to 30 sec, 1 minute to 60 minutes, 13 selects Fast interval: A single waveform, or 0.1, 0.2, or 0.5 sec (at instant value only) |
| Frequency characterristics | Fundamental waveforms up to the 50th order ±3% f.s. + measurement accuracy (of a 45 to 66 Hz fundamental waveform) |
| Other functions | Error connect check, language selection, display hold, setting backup, power shut off management, key lock, [3169-21 only] D/A output 4 channels, ±5 V DC f.s.) |
| Power supply | 100 to 240 V AC, 50/60 Hz, 30 VA max. |
| Dimensions, mass | 210 mm (8.27 in) W × 160 mm (6.30 in) H × 60 mm (2.36 in) D, 1.2 kg (42.3 oz) |
| Supplied accessories | VOLTAGE CORD L9438-53 ×1 (Black/ Red/ Yellow/ Blue), Power cord ×1, Instruction Manual ×1, Quick Start Manual ×1, CD-R ×1 (RS-232C interface operating manual) ×1, Input cord label ×1, CONNECTION CABLE 9441 ×1 (for the 3169-21 only) |
OPTION
|
 |
|
|
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
|
|
|
||||||||||||
|
|||||||||||||||
| For clamp sensor adapter |
|
|||||||||
|
|||||||||
| DOWNLOAD CATALOG |
|
|
 |
3169-20, 3169-21 product catalog.pdf (1.41 MB) (2012-09-06 updated) |
