Optical system: Infinite Optical System

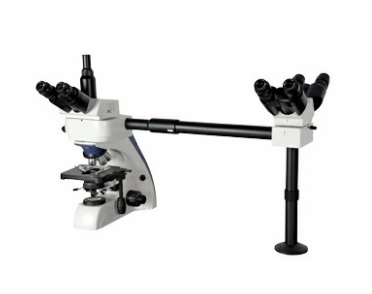

Viewing Head: Compensation FFree Trinocular Head; Inclined at 30° ( 50mm-70mm ); 2-Binocular head, interpupillary distance adjustable 50mm-75mm
Eyepiece: Plan WF10X/22mm
Objective: Infinity plan objective 4X0.10 , 10X/0.25 , 40X/0.65, 100X/1.25 Oil
Nosepiece: Quadruple Nosepiece
Stage: Double layers mechanical stage; stage size : 180mmx 160mm; Moving range： 80mmx 50mm
Focusing: Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm
Light Source: Kohler illumination with aperture iris diaphragm and field iris diaphragm; Halogen Bulb 12V/100W，AC85V-230V; brightness adjustable
Indicator: LED cursor，brightness adjustable
Optional Acessory
- Eyepiece WF15X/17mm,WF20 X/12.5mm
- infinity plan objective 20X0.40,60X/0.85
- infinity semi-plan objective4X0.10 、 10X/0.25、 20X/0.40、40X/0.65, 60X/0.85, 100X/1.25 Oil
- Photography attachment and CCD C-mount：0.5X, 0.57X, 0.75X
- 1.3Mega, 2.0Mega, 3.0Mega, 5.0Mega, 10.0Mega
- CMOS Digital camera eyepiece
- CCD Camera,colour1/3 High resolution 700 TV lines
- Image analysis software
