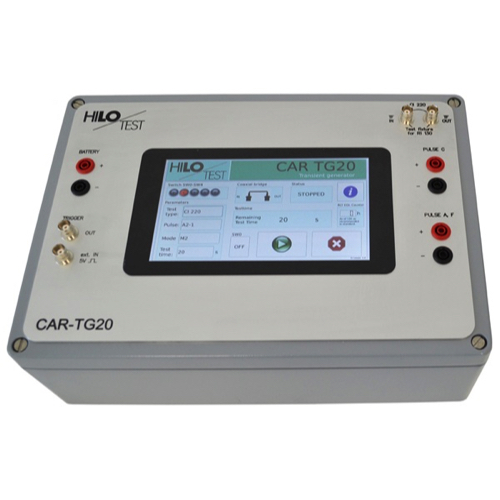

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Mains power / BAT-IN: 9 V – 56 VDC
Dimensions (case, W × H × D): 330 × 115 × 230 mm³
Weight: 8 kg
Technical Specifications
Resistor R1: 51 Ω, 0.25 W
Resistor R2: 220 Ω, 2 W
Resistor R3: 33 Ω, 10 W
Resistor R4: 6 Ω, 50 W
Capacitor C1: 100 nF PETP polyester film capacitor, 400 V
Inductor L1: 5 µH inductor (Osborne transformer #8745)
Inductor L2: 100 mH inductor (Osborne transformer #32416)
Diode D1: Zener diode, 39 V, 5 W
Transistor Q1: NPN transistor
Switch SW0–SW4: Single Throw Switch
Relay RLY1: 12 V AC relay, NC contact used (Potter & Brumfield KUP-14A15-12)
