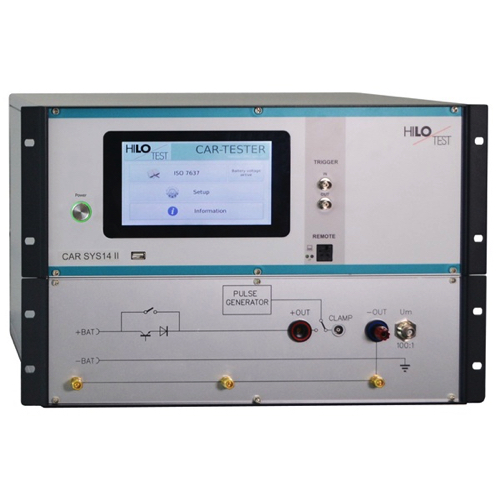

For testing electromagnetic immunity of the electrical installation of vehicles and components against supply line transients.
Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Ethernet Interface: Built-in, for remote control of the generator
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA
Cooling: Controlled fans and heat sink
Mains power: 90V - 264V, 50/60 Hz
Dimensions (case, 7 HE, W × H × D): 450 × 310 × 500 mm³
Weight: 35 kg
Measurement Equipment
Impulse voltage divider: 4.95 kΩ / 50 Ω, 100:1, 1 kV-peak
Power supply switch:
Output current (depending on system type): 50 A, 100 A, 200 A
Max. reverse voltage: 800 V
Transient over voltage protection: >1000 V
High short circuit current capability: 900 A
Protection with automatic circuit breaker: 50 A, 100 A, 200 A
Amplifier sense line decoupled from output: built-in
Trigger input, connectable to external modules: built-in
Integrated pulse forms: According to ISO 7637-2, 2011
Included Pulse
Pulse 1: 1-5/2000µs
Pulse 2a: 1 / 50µs
Pulse 3: 5/150 ns
