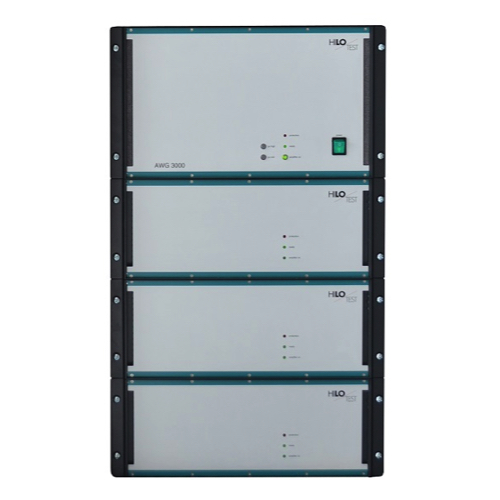

Mainframe
Ethernet Interface: Built-in, for remote control of the generator
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA
Mains power: 400 V, 50 Hz
Dimensions (case, W × H × D): 20 HE rack
Weight: 140 kg
Amplifier
Type: 4-quadrant voltage and current amplifier
Power bandwidth: 200 kHz
Frequency range (small signal -3 dB): 1 MHz
Max. voltage: +70V/-30V
Max. current: +100 A
Max. current (500 ms): +200 A
Max. power: 3000 W
Selectable output impedance: 0 - 200 mΩ
Overvoltage protection: ✓
Voltage/Current monitoring: ✓
Slew rate: 70 V/µs
Small signal bandwidth: DC - 600 kHz
Residual noise output: <62 dBV; 10 Hz - 500 kHz
Signal/Noise output: >97 dBV; 10 Hz - 200 kHz
Cooling: Controlled fans and heat sink
Overcurrent protection: With CAR SYS magnetic and thermic
Triggering: With CAR SYS software / Manual / External
Trigger output: With CAR SYS for oscilloscope
Arbitrary Generator
Resolution: 14 Bit
Sample rate: 20 MSa/s
Max. points: 16 MSa
Segment types: DC, Sinus, Sine sweep, Ramp, Exponential function
