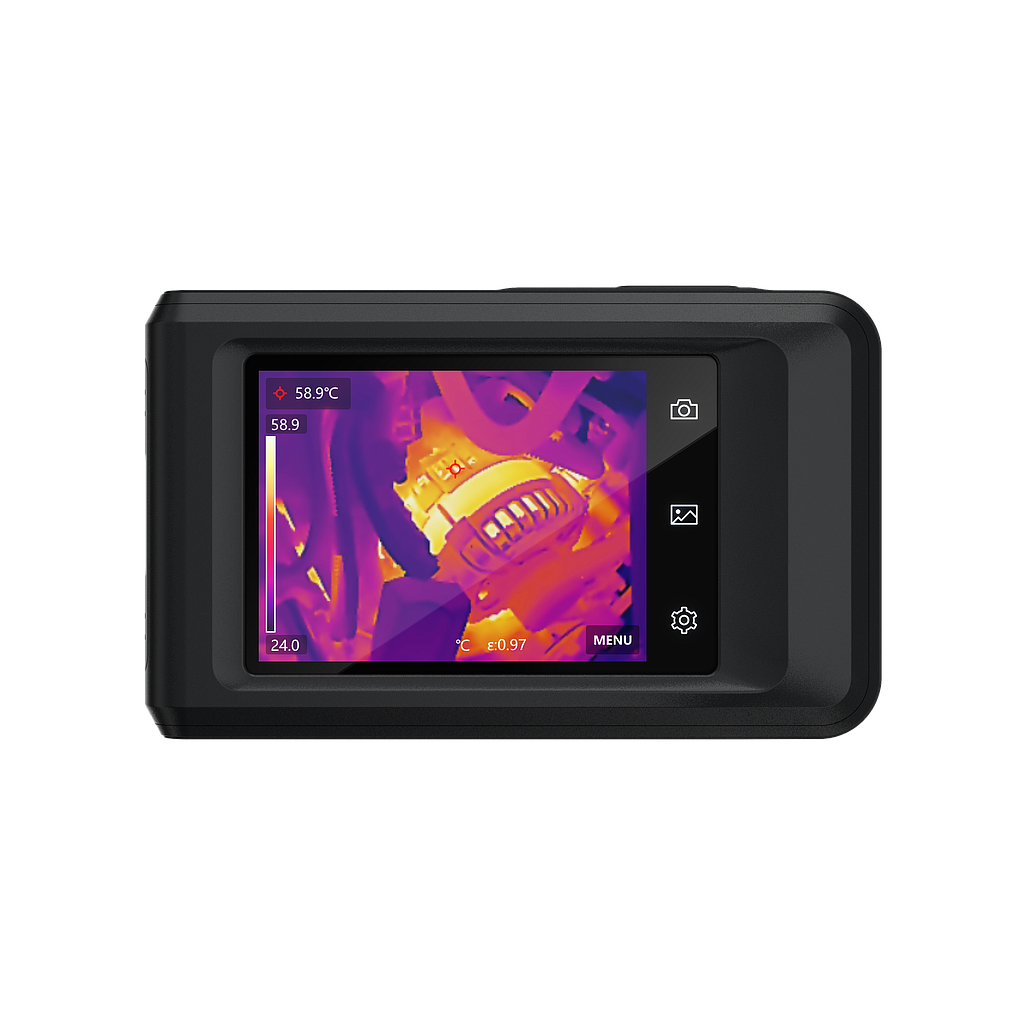

THERMAL MODULE
IR Resolution: 192 x 144 (27,648 pixels)
Spectral range: 8 to 14 pm
NETD: <0.04°C 140 mK) at 25°C/77°F) ambient temperature, F# - 1.0 3.5 mm
Focal length focus: Fixed
FOV (Field of View): 37.5° H 28°V
IFOV (Spatial Resolution): 3.43 mrad
Image frequency: 25 Hz
Minimum focus distance: 0.3 m (0.98 ft)
F-number: F1.1
OPTICAL MODULE
FOV (Field of View): 64.6° H 51.5 V
Picture resolution: Configurable: 2 MP, 5 MP, 8 MP
Video resolution: 640 x 480
Focus: Fixed
IMAGE DISPLAY
Display: 640 x 480 Resolution, 3.5" LCD Touch Screen
Image modes: Thermal/Optical/Fusion/PIP
Color palettes: 7: White Hot, Black Hot, Rainbow, Ironbow, Red Hot Fusion, Rain
Digital zoom: 1.0x to 4.0x continuous
Screen brightness: Manual adjustment
MEASUREMENT AND ANALYSIS
Object temperature range: -20°C to 400°C (-4°F to 752°F)
Accuracy: Max. (+ 2°C/3.6°F, + 2%), for ambient temperature from 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F]
STORAGE
Storage media: Built-in EMMC (16 GB)
Image storage capacity: Approx. 60,000 images
Image file format : Radiometric.JPEG with measurement data included Thermal.THM.JPEG without measurement data included
Video storage capacity: Approx. 10 h
Video file format: Standard MP4 non-radiometric video
Text note: Max. 200 Characters
POWER SYSTEM
Power supply: 5 VDC/2A (Charging via USB), fast charging
Power consumption: 1.92 W
Battery Type: Rechargeable Li-ion battery
Battery operating time: 4 hours continuous running per battery (actual life varies depending on settings and usage)
Battery charging time: 1.5 h to 94%, 2.5h to full charge
Battery charging system: In-imager charging, fast charging
GENERAL
Wi-fi: 802.11 b/g/n (2.4 GHz, 5GHz)
Bluetooth: Bluetooth 4.2
USB interface: USB 2.0, USB Type-C
LED Light (Torch): Yes
Microphone: Yes
Safety: IEC 62368-1: Overvoltage category II, Pollution Degree 2
Language: 21 Languages
Working temperature range: -10°C to 50°C (14°F to 122°F)
Protection level: IP54 Iprotected against dust, limited ingress; protection against water spray from all directions
Drop test height: 2 m (6.56 ft)
Weight : Approx. 218 g (0.481 lb)
Dimension : 138.5 mm x 85.2 mm x 23.6 mm (5.45"x 3.35" x 0.93")
