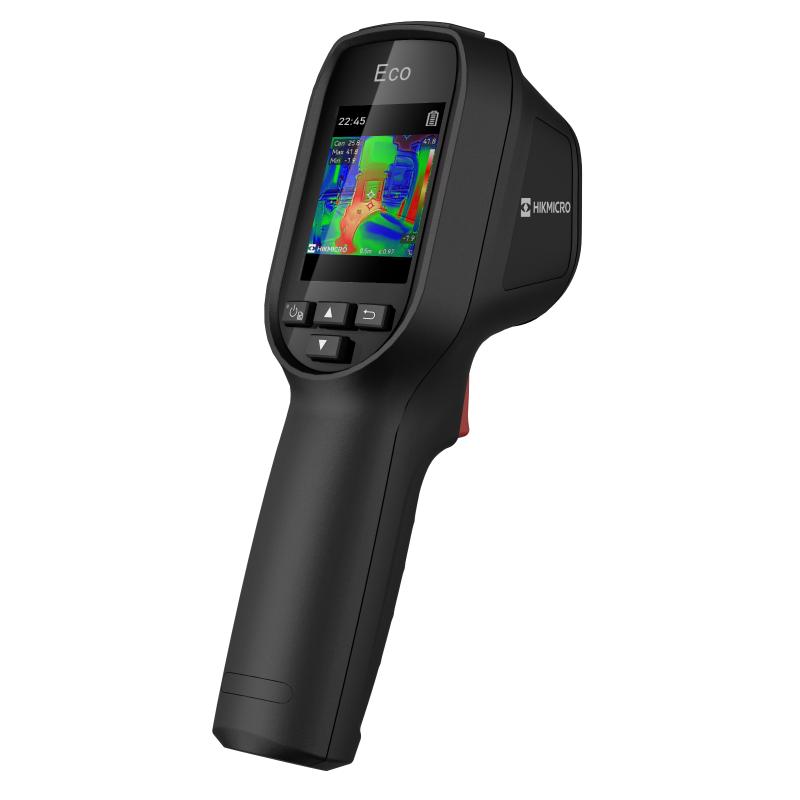

HIKMICRO Eco-V Handheld Thermal Camera (96x96 pixel; 240x240pixel; -20°C~550°C)

Infrared Image

IR Resolution 96 × 96 (9,216 pixels)

SuperIR 240 × 240 (57,600 pixels)

Distance to Spot Ratio (D:S) 112:1

NETD < 50 mK (@ 25°C, F# = 1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 1.35 mm

F-number: F1.0

Field of View (FOV): 50° × 50°

Spatial Resolution (IFOV): 8.89 mrad

Min. Focus Distance: 0.1 m (0.33 ft)

Focus Mode: Focus Free

Image Display

Display: 240 × 320 Resolution, 2.4”LCD Screen

Image Modes: Thermal/Visual/Fusion

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion

Color Alarm: Above alarm

Visual Camera 640 × 480

Measurement and Analysis

Object Temperature Range: -20°C to 550°C (-4°F to 1022°F)

Accuracy: Max. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot

Level and Span Mode: Auto/Manual

Data Storage and Communication

Storage Media: Built-in 4 GB flash memory

Image Storage Capacity: Approx. 30,000 Images

General

USB Interface: USB Type-C

Laser: Yes, Class II

Battery Type: Rechargeable Li-ion battery

Battery Charging Time: Approx. 3 hours fully charged (Adapter Output: 5 V 2 A)

Battery Operating Time: Approx. 8 hours

Protection Level: IP54

Drop Test Height: 2 m (6.56 ft)

Working Temperature Range: -10°C to 50°C (14°F to 122°F)

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 290 g (0.64 lb)

Dimension: 196 × 117 × 59 mm (7.7” × 4.6” × 2.3”)

Tripod Mounting: UNC ¼”-20
