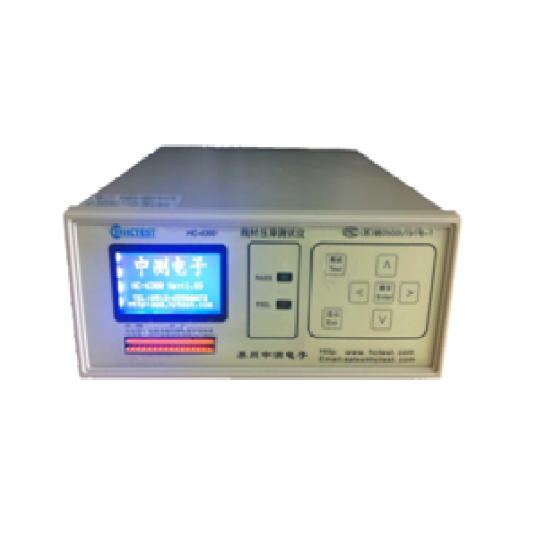

HCTEST HC-6500 LED Color Tester (0~ 8.000V; 0~50.000mA)

Basic Accuracy: 0.001

Touch mode: Internal, Manual, External

Speed: Fast, Medium, Slow

Calibration: yes

Test port: 8 groups

Display: 128*64 LCD

Test color: white, red, blue, green

Output Volt.: 0~8.000V

Output Current: 0~50.000mA

Color Current: 0~ 50.000mA

Color sensor: Square wave output (0~150kHz)

Test volt.: 3.3~5V

+ Channel: 2

+ Test group number: 8

+ Pin options:

P+: P1-P8

P-: P1-P8

Memory: 5 files

Interface: Phenix 20Pin test port, 16Pin sensor port, Remote, DB9 pin

Temp. Humidity: 0~60°C, ≤90%RH

Power Volt .: AC 220V ±10%

Power Freq.: 50Hz ±5%

Power consumption: ≤ 60W

Size (W×H×D): 320*280*100mm

Weight: ≈5kg

Datasheet
