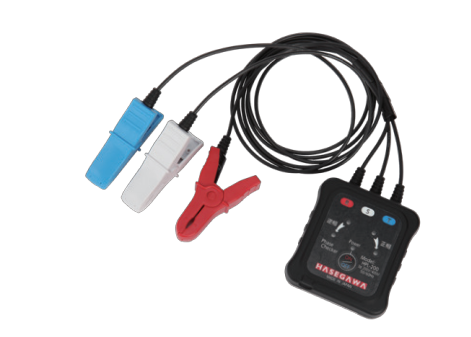

HASEGAWA HPL-200 Low Voltage Phase Checker (AC 80~600 V)

■Specifications

Applicable circuits: 3-phase 3-line system and 3-phase 4-line system

Working voltage range: AC 80 V to 600 V (Sine wave, continuous) 45～66Hz

Dielectric resistance: 100 MΩ or more, using 500 V megger (Between clip and case)

Dielectric strength: AC 2,000 V, one minute (Between clip and case)

Leakage current: During dielectric strength testing, 100 μA or less

Power supply display: Red LED × 1 (Automatic power OFF approx. 5 minutes)

Sound volume: 50 dB or more (50 cm apart)

Battery: LR03(1.5V)×2

Continuous use approx. 15 hours

Electric line: IV, DV, OW 2 mm2 to 100mm2 (Finished external diameter ø2.8mm to 22mm)

Weight: About 190g (including batteries)

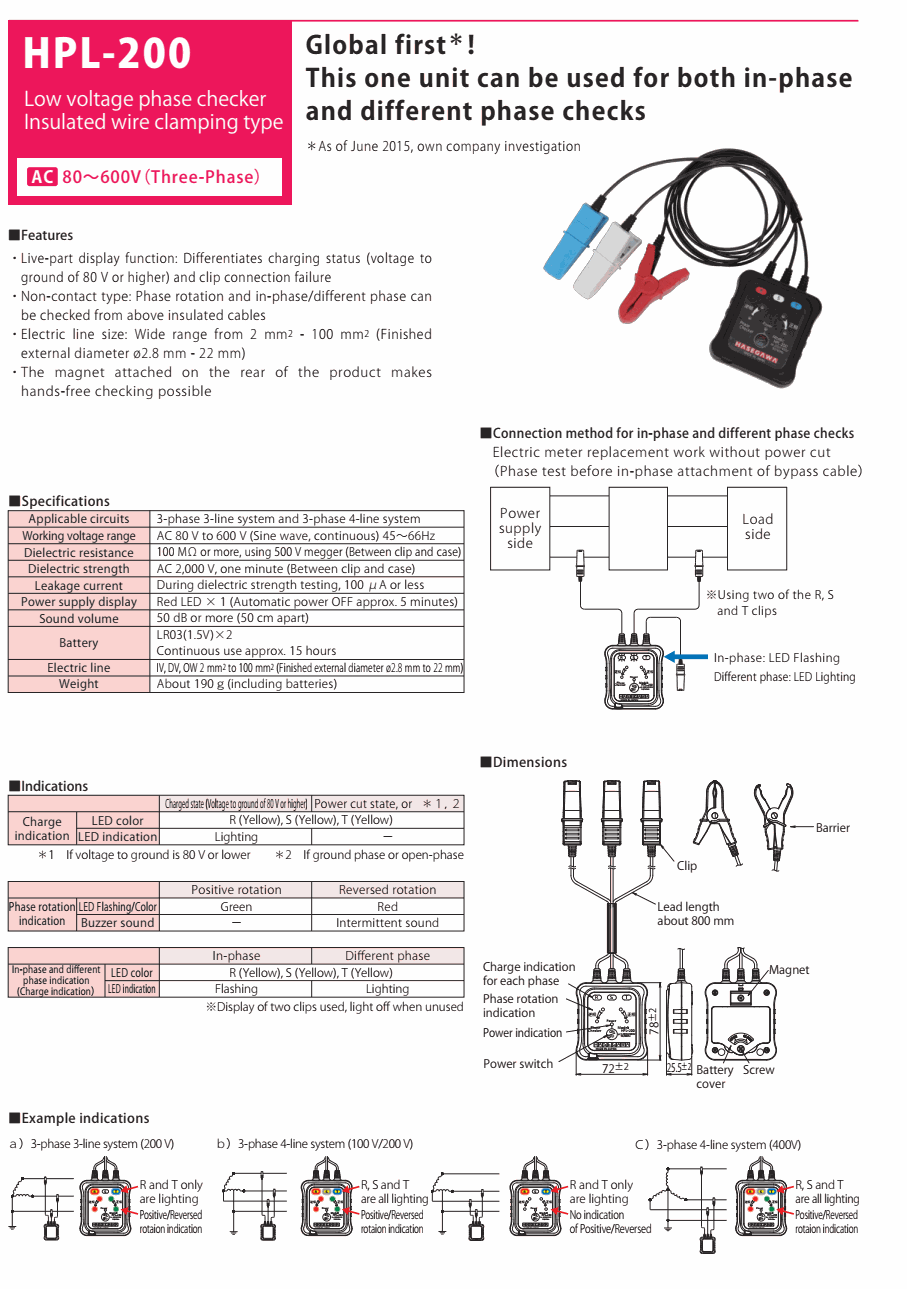

Datasheet
