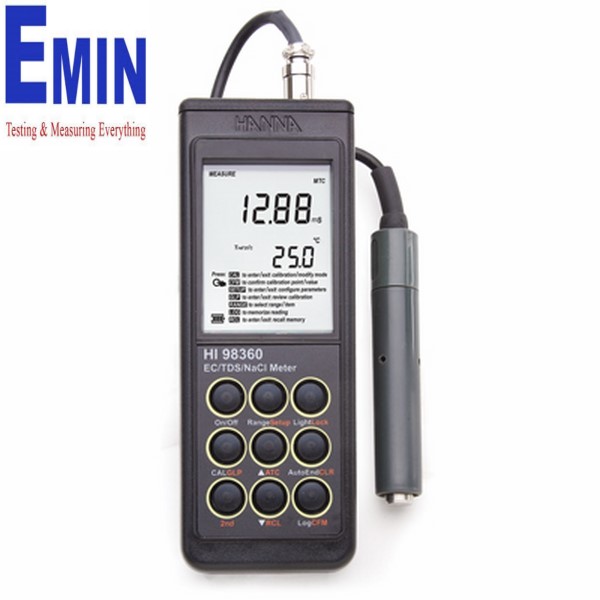

Hanna HI98360 EC/TDS/NaCl/°C Meter (0.00 to 29.99 µS/cm)

Manufacture: Hanna
Model: HI98360
Warranty: 12 month

Range
- EC: 0.00 to 29.99 µS/cm; 30.0 to 299.9 µS/cm; 300 to 2999 µS/cm; 3.00 to 29.99 mS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (actual EC)
- TDS: 0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L (ppt); 15.0 to 100.0 g/L (ppt); up to 400.0 g/L (ppt) (actual TDS) with 0.80 conversion factor
- NaCl: 0.0 to 400.0%
- Temperture: –20.0 to 120.0 ºC (-4.0 to 248.0ºF)
Resolution
- EC: 0.01 µS/cm; 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm
- TDS: 0.01 mg/L (ppm); 0.1 mg/L (ppm); 1 mg/L (ppm); 0.01 g/L (ppt); 0.1 g/L (ppt)
- NaCl: 0.1%
- Temperture: 0.1°C
Accuracy
- EC: ±0.5%
- TDS: ±0.5%
- NaCl: ±0.5%
- Temperture: ±0.2°C
Calibration
- EC: automatic, one point with six memorized values (84, 1413, 5000, 12880, 80000, 111800 µS/cm)
- NaCl: one point with HI 7037 calibration solution
- Temperture: two point, at 0 and 50°C (32 and 122°F)
Temperature
Compensation: automatic or manual from –20.0 to 120.0 ºC (-4.0 to 248.0ºF) (can be disabled for measuring conductivity)
Temperature Coefficient: selectable from 0.00 to 6.00%/ºC (EC and TDS only); default value is 1.90%/ºC
TDS Conversion Factor: selectable from 0.40 to 0.80 (default value is 0.50)
Data Logging: log on demand, up to 500 samples
Probe: HI 76309/1.5 four ring conductivity probe with internal temperature sensor, DIN connector and 1.5 m (4.9’) cable
Power Supply: 1.5V AAA batteries (3) /approximately 200 hours of continuous use without backlight (50 hours with backlight on); auto-off after 5, 10, 20 and 60 minutes (can be disabled)
Environment: 0 to 50°C (32 to 122°F); RH max 95%
Dimensions: 185 x 72 x 36 mm (7.3 x 2.8 x 1.4”)
Weight: 300 g (10.6 oz)
Order Information: HI 98360 is supplied with HI 76309/1.5 conductivity probe, batteries, instructions and rugged carrying case.
