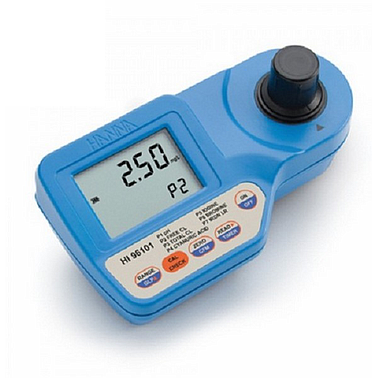

Hanna HI96101 Bromine, Chlorine, Cyanuric Acid, Iron Iodine and pH Portable Photometer

Range
- Bromine: 0.00 to 10.00 mg/L (ppm)
- Cl, Free: 0.00 to 5.00 mg/L (ppm)
- Cl, Total: 0.00 to 5.00 mg/L (ppm)
- CYA: 0 to 80 mg/L (ppm)
- Iodine: 0.0 to 12.5 mg/L (ppm)
- Iron LR: 0.00 to 1.60 mg/L
- pH: 6.5 to 8.5 pH
Resolution
- Bromine: 0.01 mg/L (ppm)
- Chlorine: 0.01 mg/L under 3.50 mg/L; 0.10 mg/L above 3.50 mg/L
- CYA: 1 mg/L (ppm)
- Iron LR: 0.01 mg/L
- pH: 0.1 pH
Accuracy
- Bromine: ±0.08 mg/L ±3% of reading
- Chlorine: ±0.03 mg/L ±3% of reading
- CYA : ±1 mg/L ±15% of reading
- Iodine: ±0.1 mg/L ±5% of reading
- Iron LR: ±0.01 mg/L ±8% of reading
- pH: ±0.1 pH
Light Source: tungsten lamp
Light Detector: silicon photocell with narrow band interference filter @ 525 nm
Power Supply: 9V battery
Auto-off: after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder
Dimensions: 192 x 104 x 69 mm (7.6 x 4.1 x 2.7")
Weight: 360 g (12.7 oz.)
Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Method
- Bromine: adaptation of the EPA, DPD method
- Chlorine: Adaptation of the USEPA method and Standard Method 4500-Cl G
- CYA: adaptation of the turbidimetric method
- Iodine: adaptation of the EPA, DPD method
- Iron LR: adaptation of the TPTZ method
- pH: Phenol Red method
Order Information: HI 96101 is supplied with sample cuvettes (2) with caps, 9V battery and instruction manual.
