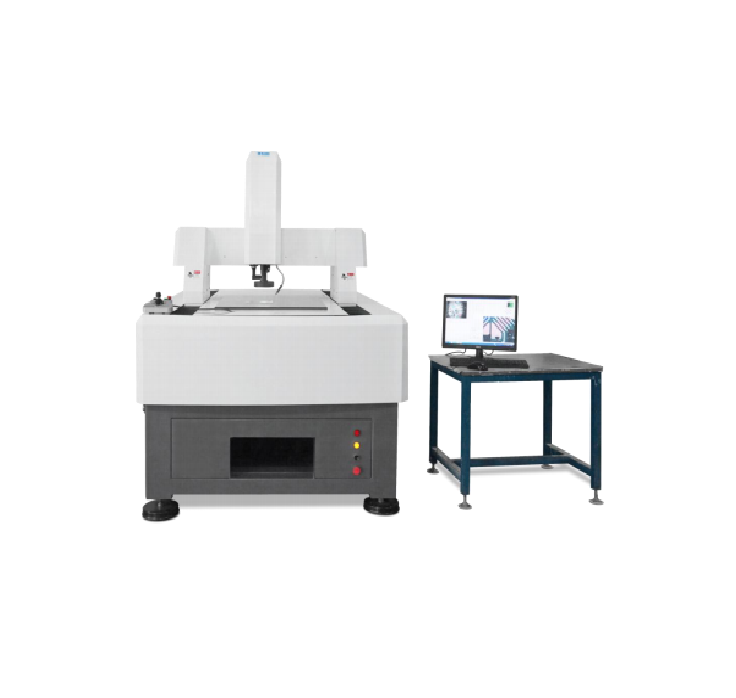

Measuring (mm): 1200x800x200
Dimension (mm): 1700x2200x1500
Instrument weight (kg): 2500
Accuracy: X,Y： (3+L/200) μm
Z： (5+L/200) μm
Repeat-ability: 2 μm
Grating ruler resolution: 0.001mm
CCD: High-resolution color CCD
Zoom lens: 0.75～4.5X high-definition manual zoom lens
Image magnification: 34～220X
Working distance: 92mm
Measuring software: HUD-CNC
Upper light source: Adjustable 6 ring 8 area surface ring LED cold light source
Under light source: Parallel light LED cold light source
Motor: Panasonic 200W servo motor
Guide rails: High precision linear guide made in Taiwan
Mode of operation: Program control or joystick
Operating Voltage: 220V (AC) 50Hz
