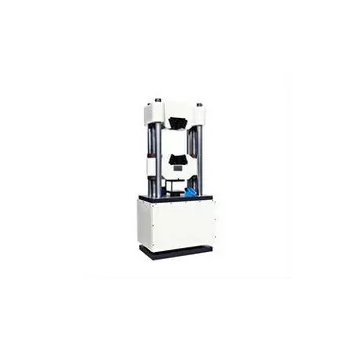

Max. capacity: 30T (300KN)
Measure range: 2%-100%FS
Load Accuracy: ±1%
Elongation resolution: 0.01mm
Elongation accuracy: ±1%
Available tensile stroke: 600mm
Available compression stroke: 600mm
Test width: 500mm
Test Speed: 0.01-200mm/min
Round sample diameter: φ9-φ26mm
Flat sample thickness: 0-20 mm
Compression diameter: φ120mm
Clamp control: Hydraulic
Motor: Servo Motor
Host Machine dimension (L×W×H): 750*600*2000mm
Controller dimension (L×W×H): 1100*750*1000mm
Weight: Approx.1600KG
Power: 3∮ , AC380V± 10%, 50Hz
