The Technical parameters:
Dropping height: 300mm-1500mm
Display method: digital display
Maximum weight of the package: 60kg
Maximum size of the package: (L×W×H)1000×700×1000mm
Size of the dropping panel: (L×W)1700×1400mm
Size of the swing: 290×240×8mm
Dropping deviation: ±10mm
Deviation of dropping horizon: less than 1°
Outside size: (L×W×H)1700×1400×2215mm
Chamber size: (L×W×H)350×350×1100mm
Weight: 550kg
Power: AC380V,50Hz
Transmitt approach: Electric transmission
Specifications
1.Test the damage degree when the package is dropped
2.CE certificated
3.Reasonable price
1/ Function

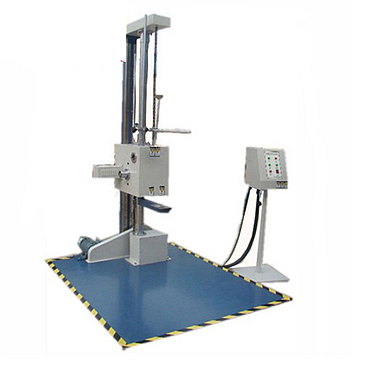

Electronic Digital Carton Drop Testing Equipment is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
2/ Operation of control chamber
A. Carton Drop Testing Equipment adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
3/ Configuration
1. Outside material: advanced paint coat
2. Display: LCD display
3. Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
4. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
5. Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
6. Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
